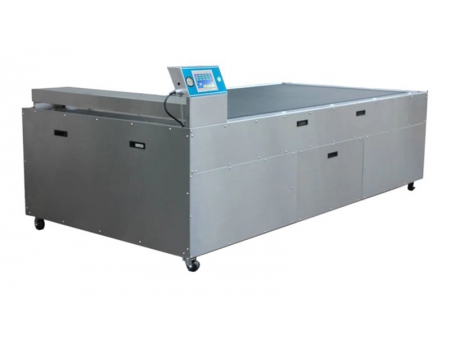

Fully Automatic Precision Exposure Machine

Fully Automatic Precision Exposure Machine
Request a Quote

Application
Equipped with 3KW air-cooled UV lamps, Jinbao's JB-1213S II fully automatic precision exposure machine is used to conduct exposure printing of high-precision lines and dots, as well as screens with high-density meshes, such as PCB or screen printing.

As a fully automatic machine, the exposure machine will automatically finish exposure, extraction and exhaust without any intervention, making it both convenient and efficient.

Specification
Model JB-1213S II
Max. frame dimension 1200×1300mm²
Air extraction speed 1L/S
Vacuum degree 0-600 mmHG
Light power 3kW
Weight(about) 300 Kg
Overall dimension 1650×1600×1350mm³

Note: Customization is available.

Feature
  • Light intensity control device
    The accurate light intensity control device ensures the exposure precision and avoids exposure defects such as mesh error and underexposure caused by voltage shortage, aged lamps and unstable lamp start-up.
  • Reflector
    When placed at the best angle, the reflector ensures an even exposure intensity.
  • Micro-computer
    The exposure machine is controlled using a micro-computer, which can store multiple back-up memory modes for user convenience.
