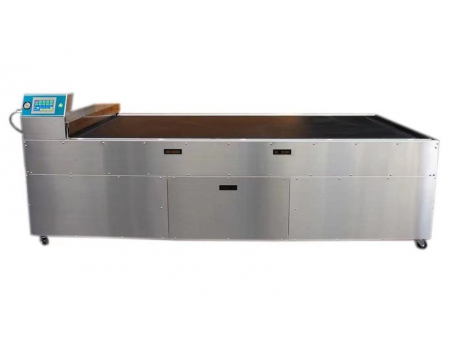

UV LED Exposure Machine

UV LED Exposure Machine
UV LED Exposure Machine
Request a Quote

To maintain high-quality printing, it is crucial to ensure uniformity in plate-making. UV exposure plays a vital role in achieving plate stability when making printing plates. However, traditional UV exposure light sources that use light bulbs often have low light source stability, which can affect the quality of the final product.

Thankfully, an innovative solution has emerged: the UV-LED exposure machine. This does not require any warm-up time and ensures the stability of the light source. It is also highly accurate in determining FTDs. Moreover, with the UV-LED exposure machine, you can create flexible or photopolymer plates for any brand.

This breakthrough technology has revolutionized the printing industry by providing more stable and higher-quality solutions.

Parameters
Product Model
GT-1320LED
Applicable Plates All flexo photopolymer printing plates Thickness:0.76mm-7mm
Exposure Area ≤1320mm*2100mm
Size and Weight Width:3100mm
Depth:1850mm
Height:1350mm
Weight:720kg
Power AC220V/50/60HZ 20A
Product Model
GT-1100LED
Applicable Plates All flexo photopolymer printing plates Thickness:0.76mm-7mm
Exposure Area ≤1100mm*1600mm
Size and Weight Width:2500mm
Depth:1650mm
Height:1350mm
Weight:620kg
Power AC220V/50/60HZ 16A
Product Model
GT-900LED
Applicable Plates All flexo photopolymer printing plates Thickness:0.76mm-7mm
Exposure Area ≤900mm*1300mm
Size and Weight Width:1950mm
Depth:1450mm
Height:1350mm
Weight:500kg
Power AC220V/50/60HZ 12A
