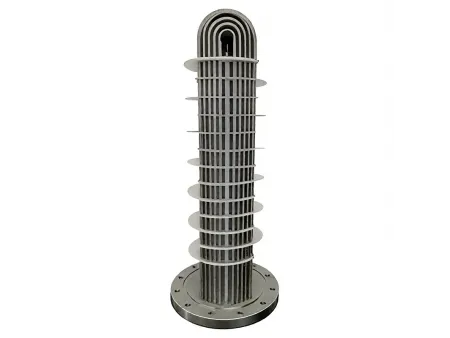

The shell-and-tube evaporator is made of durable stainless steel, providing corrosion resistance and mechanical strength. It is specifically designed for clean or corrosive media. Featuring a compact structure, high heat transfer efficiency, and strong pressure-bearing capacity, it is widely used in industries with strict hygiene requirements, such as pharmaceuticals, food, and chemicals. As a key high-efficiency heat exchange component in chillers, heat pumps, and process cooling systems, it ensures long-term stable operation of the equipment.

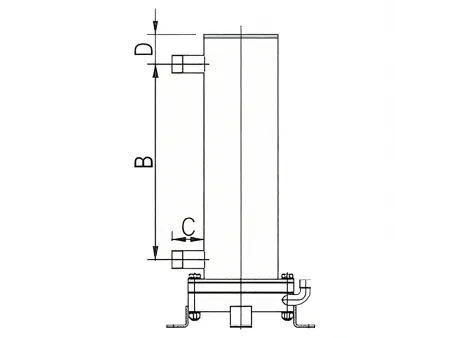

Single-Circuit System, Vertical Type Stainless Steel Shell-and-Tube Evaporator
Specifications
Heat exchanger model Compressor horsepower Water pipe connection Dimensions (mm)
A B C D E F
HZF-1L 1HP DN15 550 370 40 50 193 193
HZF-2L 2HP DN20 550 370 40 50 212 212
HZF-3L 3HP DN25 550 370 40 50 235 235
HZF-4L 4HP DN25 550 370 40 50 255 255
HZF-5L 5HP DN25 600 420 40 50 285 285
HZF-6L 6HP DN25 600 420 40 50 285 285
HZF-7L 7HP DN25 600 420 40 50 305 305
HZF-8L 8HP DN25 650 475 40 60 305 305
HZF-10L 10HP DN40 650 455 50 70 330 330
HZF-12L 12HP DN40 650 455 50 70 330 330
Single-Circuit System, Horizontal Type Stainless Steel Shell-and-Tube Evaporator
Specifications
Heat exchanger model Compressor horsepower Water pipe connection Dimensions (mm)
A B C D E F G H
HZF-3 3HP DN25 585 260 200 100 200 160 40 370
HZF-4 4HP DN25 585 260 200 100 200 160 40 370
HZF-5 5HP DN25 618 277 200 100 300 180 40 404
HZF-6 6HP DN25 618 277 200 100 300 180 40 404
HZF-7 7HP DN25 618 290 200 100 300 180 40 404
HZF-8 8HP DN25 708 290 200 100 350 180 50 475
HZF-10 10HP DN40 828 290 200 100 450 180 50 560
HZF-12 12HP DN40 828 290 200 100 450 180 50 560
HZF-15 15HP DN40 1118 290 200 175 600 180 50 860
HZF-20 20HP DN50 1603 277 200 275 900 180 65 1320
HZF-25 25HP DN50 1603 290 200 275 900 180 65 1320
Dual-Circuit System, Horizontal Type Stainless Steel Shell-and-Tube Evaporator (4HP×2-30HP×2)
Specifications
Heat exchanger model Compressor horsepower Water pipe connection Dimensions (mm)
A B C D E F G H
HZF-4*2 4HP*2 DN25 708 290 200 100 350 160 50 475
HZF-5*2 5HP*2 DN25 828 290 200 100 450 190 50 560
HZF-6*2 6HP*2 DN25 828 290 200 100 450 160 50 560
HZF-7,5*2 7,5HP*2 DN25 1118 290 200 175 600 190 50 860
HZF-10*2 10HP*2 DN40 1603 277 200 275 900 180 65 1320
HZF-12*2 12HP*2 DN40 1603 290 200 275 900 180 65 1320
HZF-15*2 15HP*2 DN40 1603 290 200 275 900 180 65 1320
HZF-20*2 20HP*2 DN50 1615 365 280 275 900 200 65 1320
HZF-25*2 25HP*2 DN65 1615 436 320 275 900 280 65 1320
HZF-30*2 30HP*2 DN65 1650 477 320 275 935 280 100 1335
Three-Circuit System, Horizontal Type Stainless Steel Shell-and-Tube Evaporator (5HP×3-25HP×3)
Specifications
Heat exchanger model Compressor horsepower Water pipe connection Dimensions (mm)
A B C D E F G H
HZF-5*3 5HP*3 DN40 1118 290 200 175 175 180 50 860
HZF-10*3 10HP*3 DN50 1615 365 250 275 275 200 65 1320
HZF-12*3 12HP*3 DN50 1615 365 250 275 275 200 65 1320
HZF-20*3 20HP*3 DN65 1650 477 320 275 275 280 100 1335
HZF-25*3 25HP*3 DN65 2315 477 320 275 275 280 100 1865
Four-Circuit System, Horizontal Type Stainless Steel Shell-and-Tube Evaporator (10HP×4-25HP×4)
Specifications
Heat exchanger model Compressor horsepower Water pipe connection Dimensions (mm)
A B C D E F G H
HZF-10*4 10HP*4 DN50 1612 453 320 250 859 280 100 1160
HZF-12*4 12HP*4 DN65 1612 468 320 250 859 280 100 1160
HZF-15*4 15HP*4 DN65 1612 468 320 250 859 280 100 1160
HZF-20*4 20HP*4 DN80 2326 468 320 250 1550 280 100 1870
HZF-25*4 25HP*4 DN80 2578 468 320 250 1802 280 100 2122
HZF-30*4 30HP*4 DN80 2578 508 320 250 1802 280 100 2122
Multi-Circuit System, Horizontal Type Stainless Steel Shell-and-Tube Evaporator (12HP×5-25HP×6)
Specifications
Heat exchanger model Compressor horsepower Water pipe connection Dimensions (mm)
A B C D E F G H
HZF-12*5 12HP*5 DN65 1612 482 320 250 859 280 100 1160
HZF-25*5 25HP*5 DN100 2578 588 400 350 1802 350 350 2122
HZF-25*6 25HP*6 DN100 3128 588 400 350 1802 350 350 2672
