The shell-and-tube condenser uses reliable heat exchange tubes and an optimized structural design, providing heat transfer efficiency and strong pressure resistance. Its compact structure, stable operation, and corrosion resistance make it suitable for medium- and large-scale refrigeration systems. Widely used in central air conditioning, cold storage, and industrial cooling applications, it ensures long-term, efficient system performance.

Single-Circuit System Shell-and-Tube Condenser (5HP-25HP)

Specifications

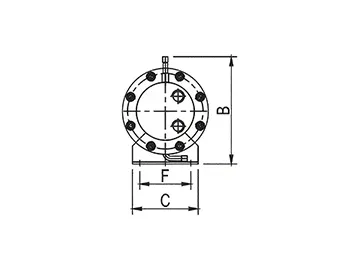

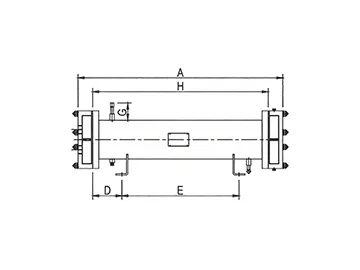

Heat exchanger model	Compressor horsepower	Water pipe connection	Dimensions (mm)
			A	B	C	D	E	F	G	H
HLN-5	5HP	DN25	680	295	180	100	360	140	70	560
HLN-6	6HP	DN25	680	295	180	100	360	140	70	560
HLN-7	7HP	DN25	840	295	180	120	480	140	70	720
HLN-8	8HP	DN40	840	295	180	120	480	140	70	720
HLN-10	10HP	DN40	900	310	200	140	500	160	70	780
HLN-12	12HP	DN40	900	310	200	140	500	160	70	780
HLN-15	15HP	DN40	1480	320	250	180	1000	200	70	1865
HLN-20	20HP	DN50	1480	320	250	180	1000	200	70	1365
HLN-25	25HP	DN50	1480	320	250	180	1000	200	70	1865

Dual-Circuit System Shell-and-Tube Condenser (4HP×2-25HP×2)

Specifications

Heat exchanger model	Compressor horsepower	Water pipe connection	Dimensions (mm)
			A	B	C	D	E	F	G	H
HLN-4*2	4HP*2	DN40	1107	320	250	180	600	200	70	1005
HLN-5*2	5HP*2	DN40	1107	320	250	180	600	200	70	1005
HLN-6*2	6HP*2	DN40	1107	320	250	180	600	200	70	1005
HLN-7.5*2	7.5HP*2	DN40	1480	320	250	180	1000	200	70	1365
HLN-10*2	10HP*2	DN50	1480	320	250	180	1000	200	70	1365
HLN-12*2	12HP*2	DN50	1480	320	250	180	1000	200	70	1365
HLN-15*2	15HP*2	DN50	1480	320	250	180	1000	200	70	1365
HLN-20*2	20HP*2	DN50	1480	320	250	180	1000	200	70	1365
HLN-25*2	25HP*2	DN65	1480	320	250	180	1000	200	70	1365

Three-Circuit System Shell-and-Tube Condenser (5HP×3-25HP×3)

Specifications

Heat exchanger model	Compressor horsepower	Water pipe connection	Dimensions (mm)
			A	B	C	D	E	F	G	H
HLN-5*3	5HP*3	DN50	1648	350	350	200	1130	300	70	1534
HLN-10*3	10HP*3	DN50	2014	350	350	303	1300	300	70	1900
HLN-12*3	12HP*3	DN65	2014	350	350	303	1300	300	70	1890
HLN-20*3	20HP*3	DN80	2014	410	350	303	1300	300	70	1900
HLN-25*3	25HP*3	DN80	2014	410	350	303	1300	300	70	1890

Four-Circuit System Shell-and-Tube Condenser (10HP×4-25HP×4)

Specifications

Heat exchanger model	Compressor horsepower	Water pipe connection	Dimensions (mm)
			A	B	C	D	E	F	G	H
HLN-10*4	10HP*4	DN65	1913	388	350	250	1300	300	70	1800
HLN-12*4	12HP*4	DN65	1913	388	350	250	1300	300	70	1800
HLN-15*4	15HP*4	DN65	1913	388	350	250	1300	300	70	1800
HLN-20*4	20HP*4	DN80	1913	388	350	250	1300	300	70	1800
HLN-25*4	25HP*4	DN80	2650	410	350	303	1800	300	70	2540

Five-Circuit System Shell-and-Tube Condenser (12HP×5-25HP×5)

Specifications

Heat exchanger model	Compressor horsepower	Water pipe connection	Dimensions (mm)
			A	B	C	D	E	F	G	H
HLN-12*5	12HP*5	DN65	2364	388	350	260	1750	300	70	2250
HLN-25*5	25HP*5	DN100	3220	575	600	325	2220	500	90	2870

Six-Circuit System Shell-and-Tube Condenser (25HP×6)

Specifications

Heat exchanger model	Compressor horsepower	Water pipe connection	Dimensions (mm)
			A	B	C	D	E	F	G	H
HLN-25*6	25HP*6	DN125	3800	575	600	325	2795	500	90	3445
