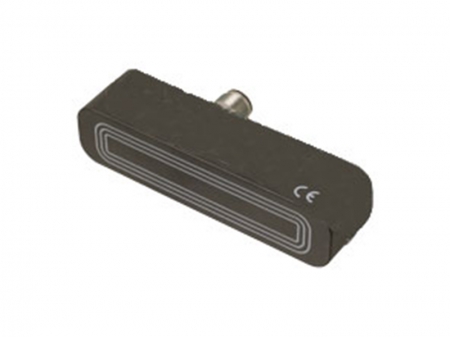

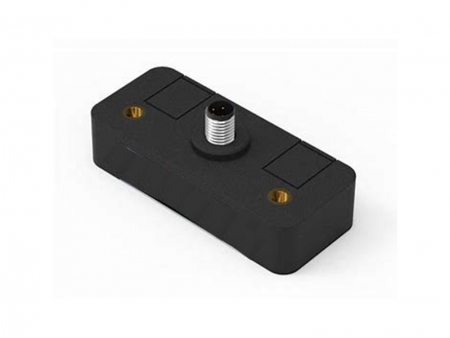

MVPS Series Magnetic Variable Position Sensor
MVPS series magnetic variable position sensor is an inductive positioning sensor optimized for a high-precision, continuous position detection. Based on the high-precision evaluation of multiple coil systems, the position encoding system is a combination of tried and tested inductive sensor technology and innovative microcontroller technology.
The compact and robust design of magnetic variable position sensor allows for a contactless and thus wear free position detection in measuring lengths of 80 mm, 40 mm and 120 mm. The sensor is with integrated temperature compensation, it is also optimally suited for rough environments and critical positioning tasks, provides a current and voltage signal at the outputs, which is proportional to the position of the attenuating element.
Due to the inductive principle of operation, you do not need any ferrites or magnets as a counterpart, the actuator can be made of any metal.
- Parameterization and diagnosis via IO-Link
- Measuring range 0-40mm or client required (such as 80mm and 120mm)
- Analog current or voltage output
- Push-pull outputs
- High resolution and accuracy
- Minimum temperature drift
- Contactless, low interference sensitivity
The position sensor is used to detect the position of a metallic target (activator) mounted on or machined into the moving part of the application. There is no contact between the position sensor and the moving part, providing excellent long-term reliability in harsh environments including high/low temperatures and thermal shock, vibration, shock, dust, grime, salt spray and pressure.
- Monitoring brake and accelerator pedals
- Ride-on cleaner pedal positions
- Digital piano pedal positions
- Positional movement of gearboxes
- Mechanical arm positions
- Motorsport throttles
- Movement simulators
- Off-highway braking systems
- ARB lever systems for measuring anti-roll bar position
- 3D printer filament position
| General Specifications | |
| Switching element function | Analog current or voltage output, programmable 2 switch outputs |
| Object distance | 0.5-3 mm, recommended: 1.5 mm |
| Measurement range | 0-40 mm |
| Linearity range | 1-39 mm |
| Nominal Ratings | |
| Operating voltage | 24VDC |
| Protection | Reverse polarity protected |
| Linearity error | within measuring range: ±0.8 mm within linearity range: ±0.4 mm |
| Repeat accuracy | ±0.1 mm |
| Resolution | 50 μm |
| Temperature drift | ±0.5 mm (-25℃ to 70℃) |
| No-load supply current | ≤40 mA |
| Operating voltage indicator | LED green |
| Interface | |
| Interface type | 1O-Link (via C/Q=Pin 4) |
| Device profile | Smart Sensor |
| Transfer rate | COM2 (38.4k Baud) |
| Value range | 0000h - 3200h |
| 10-Link Revision | 1.1 |
| Min. cycle time | 2.3 ms |
| Process data width | Process data input: 16 Bit Process data output: none |
| Compatible master port type | A |
| Switching Output | |
| Output type | 2 push-pull outputs (can be parameterized, short circuit proof, reverse polarity protection, surge proof) |
| Operating current | ≤100 mA/output |
| Switching window | ±1mm |
| Switching hysteresis | 02 mm |
| Voltage drop | ≤3V |
| Short-circuit protection | pulsing |
| Analog output | |
| Output type | Current output: 4-20mA Voltage output: 0-10V |
| Load resistor | Current output: ≤4000 Voltage output: ≥10000 |
| Short-circuit protection | Voltage output: current limit |
| Ambient Conditions | |
| Ambient temperature | -25 to 85℃ (-13 to 185°F) |
| Mechanical Specifications | |
| Connection type | 5-pin, M12×1 connector |
| Degree of protection | IP67/IP69K |
| Housing material | PBT, SUS304, brass, nickel-plated |
| Target material | Mild steel, e.g. 1.0037, |
