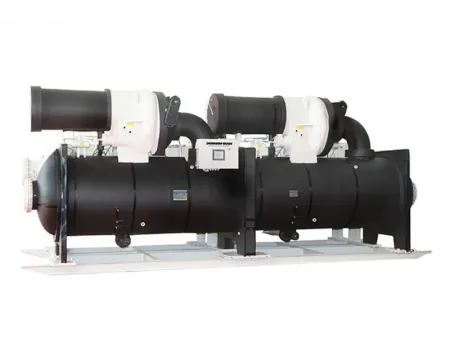

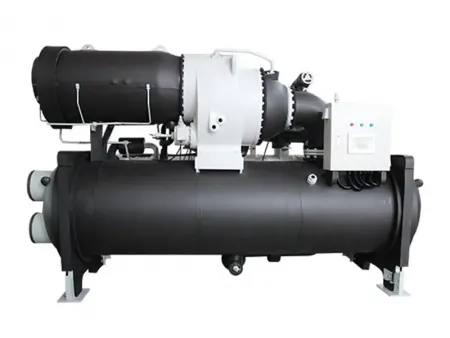

Centrifugal Chiller Heat Pump Unit
The centrifugal chiller heat pump unit is available in a wide range of models, including single-head, dual-head, two-stage centrifugal, magnetic suspension, and gas suspension series, catering to diverse user requirements. It is extensively used in systems such as air-cooled heat recovery, water (ground) source heat pumps, seawater source heat pumps, wastewater source heat pumps, waste heat recovery systems, and air source heat pumps.
- Cooling Capacity: 300-2000RT (single stage), 600-4000RT (two stage)
- Chilled Water Inlet/Outlet Temperature: 12/7℃
- Cooling Water Inlet/Outlet Temperature: 32/37℃
Two-Stage Compression Centrifugal Chiller
- Cooling Capacity: 300-3000RT
- Chilled Water Inlet/Outlet Temperature: 12/7℃
- Cooling Water Inlet/Outlet Temperature: 25/30℃
Two-Stage Compression Centrifugal Heat Pump
- Heating Capacity: 300-2500kW
- Hot Water Outlet Temperature: 45℃
- Heat Source Water Inlet/Outlet Temperature: 10℃
Two-stage compression design for a high compression ratio, ensuring stable and reliable performance
Semi-hermetic compressor for easy maintenance and long-term operational efficiency
Two-Stage Compression Centrifugal Chiller
- Cooling Capacity: 100-900RT Chilled Water Inlet/Outlet Temperature: 12/7℃ Cooling Water Inlet/Outlet Temperature: 30/35℃
Magnetic Suspension Centrifugal Heat Pump
- Heating Capacity: 500-1934kW Ambient Temperature: -30℃ Hot Water Outlet Temperature: 75℃
Magnetic levitation compressor with oil-free operation for enhanced heat exchange efficiency
Two-stage compression design to expand the operational range
- Uses environmentally friendly refrigerants for energy efficiency and sustainability
- Ultra-precise hydrostatic air bearings with oil-free operation
- Extremely low vibration and zero power consumption for bearings, enabling silent operation
- Equipped with variable frequency drive for automatic adjustment, ensuring safe and reliable operation
- Uses environmentally friendly HFC-134a refrigerant, promoting energy efficiency and sustainability
- Equipped with the third-generation CCS TOUCH system for intelligent control and simplified operation
- Professionally designed for high efficiency, stable performance, and reliable safety
- Features a user-friendly microcomputer control interface for easy operation
- Offers optional functions such as ice storage and heat recovery
- Certified to meet national energy efficiency standards and international LEED certification
