Tri-function Heat Pump/Chiller
-
Cooling / hot water mode
After powering on, the system begins with running the cooling / hot water mode to produce free hot water. If the cold water of the air conditioner is observed to reach the pre-set value, but the domestic hot water does not match up to its set temperature, the system will switch to a single hot water mode. Similarly, when the temperature of the domestic hot water matches its set value, but the cold water of the air conditioner has not yet attained the status its requires, the unit will transition to a single-system cold water mode. If both the air conditioner cold water and the domestic hot water reach their set temperatures, the compressor will stop and enter standby mode.
-
Heating / hot water mode
Winter Heating Hot Water Mode 1 (with priority on hot water): Upon start-up, the unit engages immediately and begins generating hot water. Once the temperature reaches the pre-set value, the unit will switch itself to the heating mode for additional warmth. Once the hot water drops beneath the designated temperature, the unit will then switch back to producing hot water until both the air conditioning and the hot water reach their individual set points, and the compressor shuts off, entering standby mode.
Winter Heating Hot Water Mode 1 (with priority on heating): Upon start-up, this mode of winter heating will firstly engage single heating mode. Once the temperature is reached, the unit will automatically switch to hot water mode. When the temperature falls below the set level again, it will seamlessly transition to heating mode. Once the hot water and air conditioning have both passed the predetermined benchmark, the compressor will stop running and enter a standby state.
-
Hot water mode
This hot water mode is designed to function with ease; once the hot water reaches the desired temperature, the compressor stops and moves into standby mode. The unit itself will automatically kick back in as soon as the water temperature starts to fall below the pre-set level and begin working to generate more hot water.
-
Heating mode
This unit only runs on a heating mode - when the temperature rises to the desired threshold, the compressor will shut off, switching to standby mode. Should the temperature dip below the threshold again, the unit will automatically restart, heating back up.
-
Cooling mode
This unit only operates on the cooling mode; as soon as it reaches the desired temperature, the compressor shuts off and goes into a standby. But if the temperature rises above the preset level, the unit will start up again and keep it at the predefined coolness. In the summer, when you don't need hot water, the refrigeration mode is a great option as it prevents the unit from constantly turning on and off.

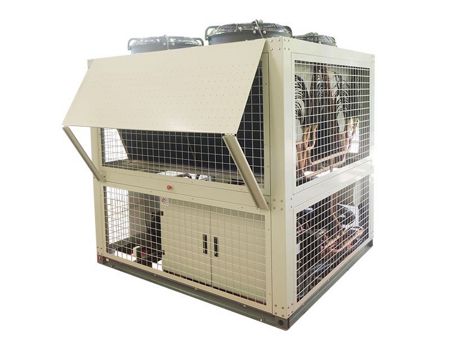

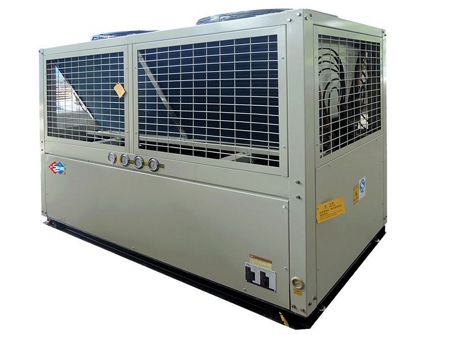

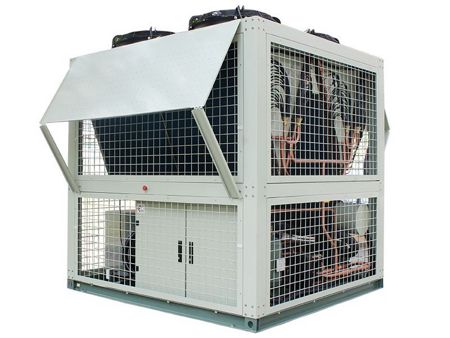

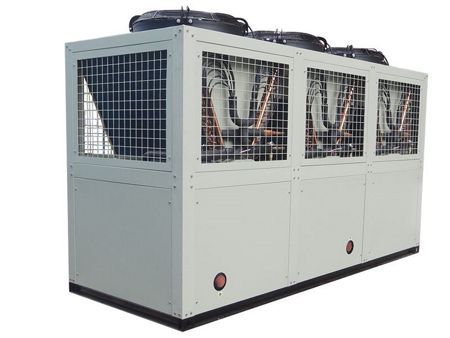

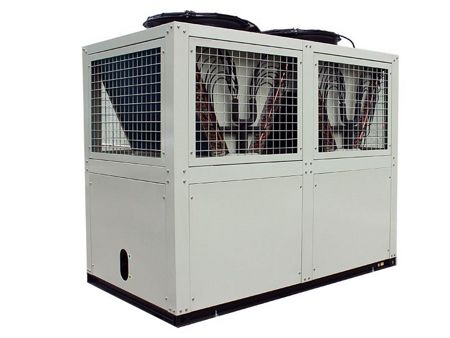

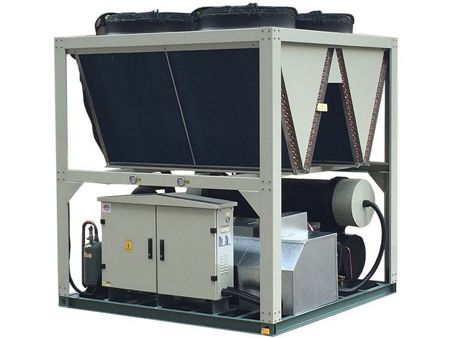

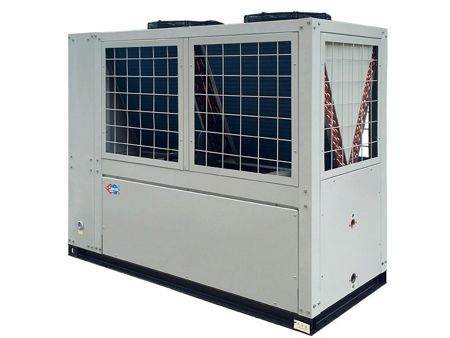

Modular Scroll Air Source Heat Pump
Refrigerant: R134a
Power supply: 380V-3N-50Hz
| Model | Nominal cooling | Nominal hot water | Nominal heating | Chilled water | Hot water | Heat exchanger | Axial fan | Noise level dB(A) | Shipping weight kg | Operating weight kg | |||||||||
| Cooling capacity kW | Compressor power input kW | Heating capacity kW | Compressor power input kW | Heating capacity kW | Compressor power input kW | Pipe diameter (inlet/outlet) in | Water flow m3/h | Water pressure drop kPa | Pipe diameter (inlet/outlet) in | Water flow m3/h | Water pressure drop kPa | Water side heat exchanger | Air side heat exchanger | Air flow×1000 m3/h | Power kW× unit | ||||
| | 17 | 5 | 26 | 7 | 18 | 5 | 1-1/2″ | 4 | 23 | 1-1/2″ | 4 | 23 | Shell and tube | Copper tube with corrugated aluminum fins | 14.5 | 1.2×1 | 65 | 620 | 730 |
| | 21 | 7 | 32 | 8 | 22 | 7 | 2″ | 5 | 28 | 2″ | 6 | 28 | 14.5 | 1.2×1 | 66 | 680 | 790 | ||
| | 26 | 8 | 39 | 10 | 27 | 8 | 2″ | 6 | 30 | 2″ | 7 | 30 | 20 | 2.0×1 | 67 | 830 | 940 | ||
| | 34 | 10 | 52 | 14 | 36 | 10 | 2″ | 7 | 28 | 2″ | 9 | 28 | 29 | 1.2×2 | 67 | 980 | 1090 | ||
| | 42 | 14 | 64 | 16 | 44 | 14 | 2″ | 9 | 28 | 2″ | 11 | 28 | 29 | 1.2×2 | 68 | 1030 | 1140 | ||
| | 52 | 16 | 78 | 20 | 54 | 16 | 2-1/2″ | 11 | 32 | 2-1/2″ | 13 | 32 | 40 | 2.0×2 | 69 | 1280 | 1390 | ||
Notes:
- 1. Rated cooling capacity standard: air dry / wet bulb temperature 35℃ /24℃, chilled water inlet/outlet temperature 12℃ /7℃;
- 2. Rated heating capacity standard: air dry / wet bulb temperature 7℃ /6℃, hot water inlet/outlet temperature 40℃ /45℃;
- 3. Rated hot water capacity standard: air dry / wet bulb temperature 20℃ /15℃, hot water inlet/outlet temperature 50℃ /55℃;
- 4. Cooling ambient temperature range: 15℃ ~43℃, heating ambient temperature range: -10℃ ~43℃, fouling factor 0.088 ㎡•℃ /kW;
- 5. Available voltages: 220V, 380V, 400V, 415V, 440V, 460V
- 6. Specifications and dimensions are subject to improvement without notice.
