Silicone Rubber Heater Wire
Request a Quote
Conductor: Alloy metal
Insulator: Silicone rubber
Rated volt.: 300V/600V
Test voltage: 1500V. 1Min
Rated temp.: 150℃, 200℃
UL approved styles: AWM3130, 3219, 3222, 3223, 3350
Mechanical Properties
Tensile strength: 3.45N/mm2 min.
Elongation at break of insulation: ≥100%
Min. bending radius: 6×OD
Standards: UL758, UL62, And UL1581
Meet with RoHS, REACH rules.
Application
Silicone rubber heater wire is used where high flexibility is required and in high temperature conditions for home electric appliance and electric heating elements.
| Style | RXV | RXG |
| OD | Ø2mm-Ø3mm | Ø2mm-Ø3.5mm |

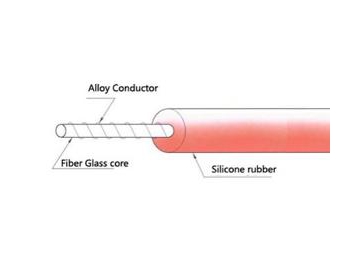

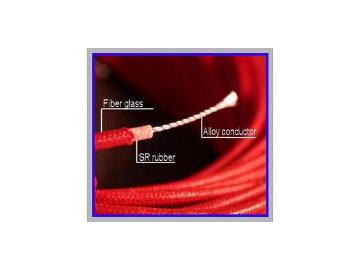

| Cable inner core | Ø0.5mm-Ø1.5mm，Glass fiber yarn | |
| Conductor | NiCr alloy or Cu-Ni conductor | |
| Insulator | 105℃PVC | Silicone rubber |
| Tolerance | DC Resistance range: ±5% Cable OD: 0.2/-0.1mm | |
| Output power | Up to 15W/m | Up to 40W/m |
| Voltage | 600V | |
| Max. surface tempeture | 105℃ | 200℃ |
| Min. surface temperature | -30℃ | -70℃ |
| Style | AWM3130 | AWM3219 | AWM3222 | AWM3223 | AWM3350 |
| Rate Volt | 300V | 300V | 300V | 300V | 600V |
| Rate Temp | 150℃ | 150℃ | 150℃ | 150℃ | 200℃ |
| Insulation Thick | 1.14mm | 0.76mm | 1.14mm | 1.52mm | 1.52mm |
| Voltage Test | 1500V | 1500V | 1500V | 1500V | 2000V |
