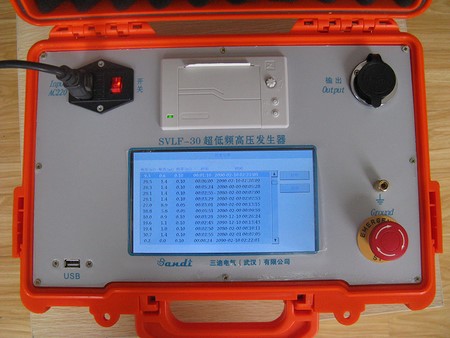

VLF Cable Tester
Request a Quote

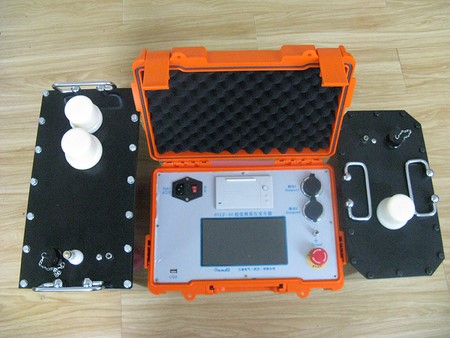

Portable high-voltage test system using very low frequency technology for determining the insulation quality of cables
The very-low frequency insulation testing is actually an alternative method to the power frequency withstand voltage test. Using a 0.1Hz very-low frequency withstand voltage test not only has the same effectiveness but also significantly reduces the volume and weight of the equipment. The capacity theoretically is about one five hundredth of the power frequency and the operation is simple.
Features
- VLF cable tester comes with digital frequency conversion technology, microcomputer control, and full automation of processes such as boosting, lowering, measuring, and protection.
- VLF cable tester features overvoltage protection, high and low side overcurrent protection, with an action time ≤10ms.
- The controller is connected to the high-voltage generator at low voltage, ensuring safe photoelectric control.
- A high and low voltage closed-loop negative feedback control circuit ensures no capacitance rise effect on output.
- Multiple frequency options of 0.1Hz, 0.05Hz, and 0.02Hz allows for a wide testing range.
Specifications
Voltage | |
Voltage (peak value) | 0-80kv |
sensitivity | 0.1kV |
accuracy | 1 % |
Waveform | |
Waveform | ultra-low frequency sine wave |
Voltage type | DC voltage |
Voltage positive and negative peak error | ≤3% |
Voltage wave distortion | ≤1% |
Frequency range | 0.1 Hz 0.05 Hz 0.02 Hz |
Load capacity (VLF test) | 10nF–10μF |
Current | |
Measuring range | 0–70 mA |
Sensitivity | 1μA |
Accuracy | 1 % |
Dissipation Factor Measurement | |
VLF sine wave voltage range | 1–80 kVrms |
Load range | 50nF–5μF |
Resolution | 1×10-6 |
Accuracy | 1×10-3 |
Measuring range | 1×10-3–21000×10-3 |
Measuring frequency | 0.1Hz |
Capacitance | 50nF-5μF |
Resistance | 30MΩ-10GΩ |
Working Conditions | |
Usage | indoor/outdoor |
Temperature | -10℃~ 40℃ |
Humidity | ≤85%RH |
Basic Information | |
Dimensions | 48×28×58cm |
Weight | 45kg |
Power supply | 50Hz, 60hz |
Voltage | 220V±5%, 50±5Hz |
