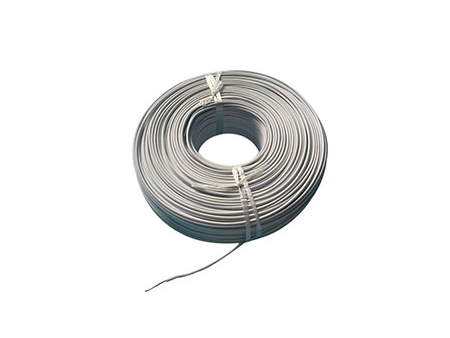

PFA Insulated Resistance Wire

PFA Insulated Resistance Wire
PFA Insulated Resistance Wire
Request a Quote

PFA-insulated resistance wire is designed for applications that require efficient thermal stability and electrical insulation. Made with PFA (perfluoroalkoxy), this type of insulated wire maintains its electrical and mechanical properties even in high-temperature environments, making it ideal for demanding industrial applications. Its good heat resistance and durability allow it to be used in aerospace, automotive, electronics, and other industries where exposure to extreme temperatures is a concern. The smooth, non-stick surface of PFA insulation also enhances flexibility and ease of installation.

Specifications
Conductor material Tin-coated copper
Conductor size 0.43mm*7
Insulation layer teflon/PFA
OD of cable 1.9mm
Weight per 100 meters 0.75kg/100meter
Remarks
  • Dimensions can be adjusted based on specific requirements.
  • Insulation thickness is customizable from 0.2mm to 2.5mm to meet different application needs.
Insulation material: Teflon (PTFE)
Property Temperature (°C)
Max. continuous operating temperature 200°C
Max. short-term exposure temperature 250°C
Insulation material: PFA (Perfluoroalkoxy)
Property Temperature (°C)
Max. continuous operating temperature 260°C
Max. short-term exposure temperature 290°C
Available conductor alloy grades
NiCr 60/15 CuNi 44 CuNi 23 OCr 25Al5 OCr 21Al6
Nickel 200 Nickel 201 Nickel 212 Tin-coated Copper Wire CuNi 6
CuNi 10 NiCr 35/20 Inconel 600 Inconel 625
Applications

PFA-insulated resistance wire is widely used for electrical connections and signal transmission in high-temperature environments. It delivers stable performance in aerospace systems, automotive electronics, and industrial automation applications that demand reliability under extreme thermal conditions.

Available colors: Black, white, green, red, yellow, blue
