Automotive High Pressure Oil Pump(hpop) Quick Connect Fitting Production Line

Automotive High Pressure Oil Pump(hpop) Quick Connect Fitting Production Line
Request a Quote

The automated assembly and testing line is mainly used for assembly, cleaning, testing and packaging of connecting rod of engine.

    Features

    • Flaw detector inspects for cracks and defects in the product
    • Special device to inspect the size for qualification
    • Ultrasonic cleaner system to remove product impurities and stains, and dry the product
    • Inner diameter inspection, automatically divided into 4 grades

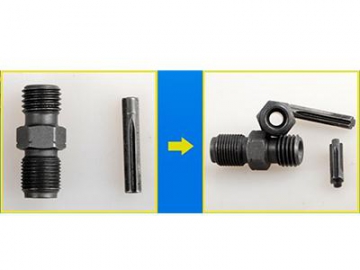

    • According to different grades the pin part will be matched for automatic riveting
    • High pressure washing machine cleans away impurities and iron cuttings
    • Automatic oil-sticking mechanism, mechanical structure has been treated with oil discharge corrosion
    • Automatic and orderly packaging into the final product transfer tray without manual contact or alignment
    • There is an NG port behind each inspection station

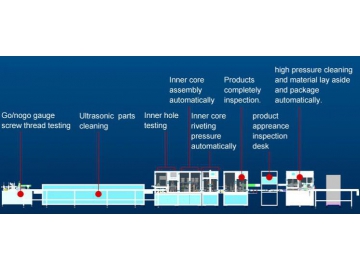

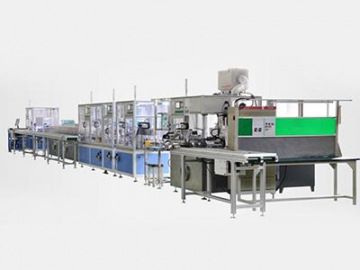

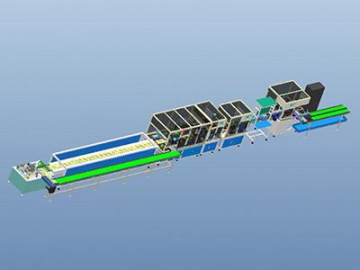

    The whole line is steady operated by various automated assembly and testing machines. It can reduce the manual work to a minimum and elevate the productivity and product quality to a higher level.

    Special Design

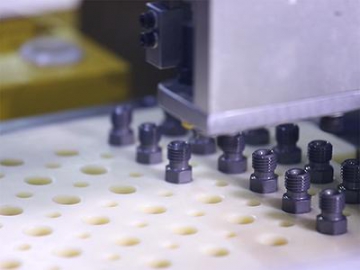

    Our company has independently developed the go/no go gauge screw thread testing of our own. It can protect the screw thread surface with less chance of damage to parts in the inspection process.

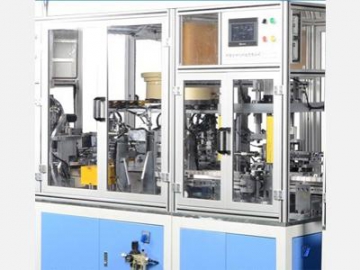

    Components
    • Hardness sorting machine and go/no go gauge testing machine: detecting heat treatment condition, avoiding material contamination and test product dimension

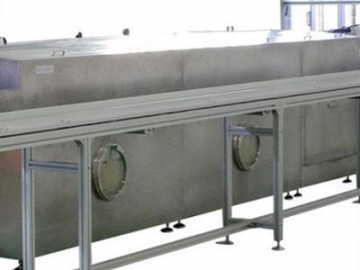

    • Ultrasonic parts cleaning equipment: washing at high temperature, drying at high pressure, maintaining the constant temperature of product

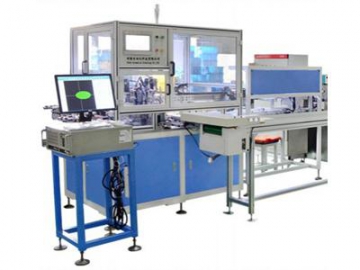

    • Touch testing machine: automated measurement of inner diameter, inner ovality and relative height

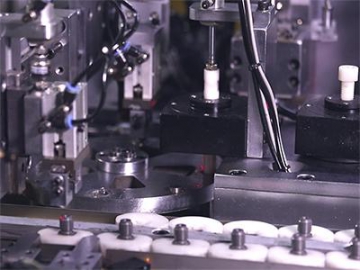

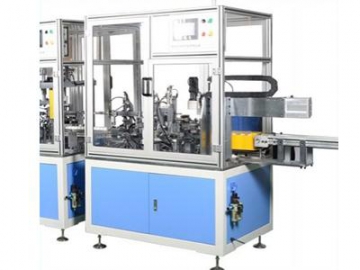

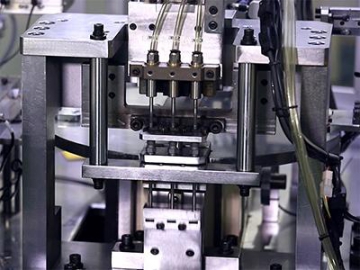

    • Automated assembly machine: inner core riveting pressure automatically, press-fit depth detection
    • Complete product inspection: automated measurement of outer diameter, outer ovality, press-fit height and total height

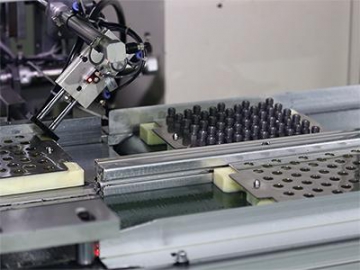

    • Automated packaging equipment: automated discharging and palletizing

    Specifications

    • Voltage: 240V 50HZ
    • Pressure: 0.4-0.6Mpa
    • Power: 1-2KW
    • Dimension: 18000*1200*1500mm
    • Capacity: 20 pieces/min
    Details

      Contact us for more details and video information.
