Lotion Pump Assembly Line

Request a Quote

View All: http://solution-automatic.com/32-lotion-pump-assembly-line.html

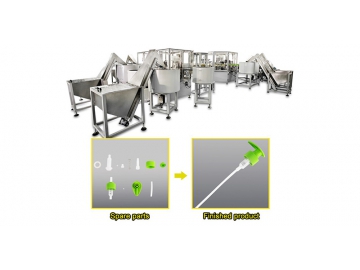

Our lotion pumps automatic assembly line is specially developed and manufactured for the lotion pump bottles industry. This automatic assembly line combines assembling and gas tightness testing, realizing a higher assembly output. This automatic assembly line can assemble and test 4 products at the same time. The production capacity of the assembly machine has risen speedily, reaching more than 80 pcs per minute. The number of operators has been reduced from several to one, and the production capacity is far beyond the old assembly method. As a result, it greatly saves your labor costs and increases your productivity.

Features

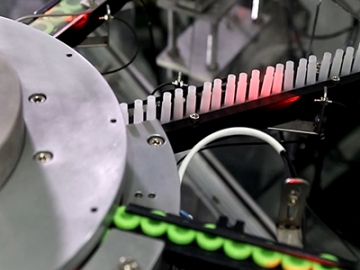

The vibrating bowl delivers 4 parts at a time, with precise feeding in place, precise positioning of the machine, and synchronous induction detection after each product is in place.
The detection function runs through the process of product feeding and assembling to ensure that no parts are lost throughout the assembly and detection.
The entire process of feeding, assembling, testing and discharging is carried out automatically and orderly, and the lotion pump is well assembled to ensure that there are no scratches, missing parts, oil stains, etc.
Good products and defective products are sorted and separated, without mixing, once again improving the quality of customer benefits.
The lotion pumps automatic assembly machine is equipped with counting function to ensure that customers can easily record weekly, monthly and annual output.
The lotion pumps automatic assembly equipment is easy to operate, easy to maintain, and easy for operators to get started.

Parameter

Name	Lotion pump automatic assembly line	Code
Application	Lotion pump	Working mode	Full-automatic
Size	320020002200mm	Workspace	320020002200mm
Weight	≈750kg	Voltage	220V/380V 50Hz
Power	≈1.2kW	Capacity	100-110 pcs/min
Display method	Human Machine Interface HIMI	Operator	1
PLC	Keyence	Relay	Omron
Touch panel	Weinview	Servo motor	ZhongDa
Air source treatment component	Festo	Linear Guides	Hiwin
External interface	RS232	Sensor	Keyence
