Lab powder coating package system
Request a Quote
This lab powder coating package includes COLO-191ST-C powder spray gun, COLO-S-04548-T powder spray booth and COLO-4355-T powder curing oven, which is ideal for mini scale powder coating job, such as lab uses, sample or powder testing, and small parts powder coating.

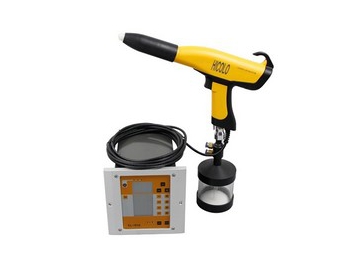

Powder Coating Gun COLO-191ST-C
- The 500ml application cup can be connected to COLO gun by quick release connection without extra tool.
- Offers innovative technologies to achieve the best coverage even on objects with complex shapes and corners.
- Smart controller with DVC (digital valve control) technology provides high-precision adjustment of voltage, amperage, airflow, powder output, etc.
- 100kv spray gun maximizes the electrostatic charging, offering the highest transfer efficiency and great powder savings.

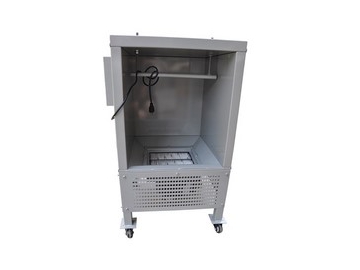

Powder Spray Booth COLO-S-04548-T
- Made of powder coated steel, the powder spray booth is durable and corrosion-resistant.
- Space-saving structure is friendly for powder coating in small working space.
- The powder spray booth will start to work after connecting with electric circuit and air circuit.
- Built with high-precise filter on the bottom of booth to collect overspray powder, maintaining a clean working environment.
| Model | COLO-S-04548-T |
| Operating dimensions | W 400 x D 480 x H 500 mm |
| Overall dimensions | W 535 x D 560 x H 950 mm |
| Weight | 50 kg |
| Power supply | Electric |
| Nominal power | 50 W |
| Voltage | 380V/220V |
| Frequency | 50-60Hz |
| Filters | Polyester |
| Filter cleaning system | Pneumatic |
| Air consumption | 4000 m3/h |

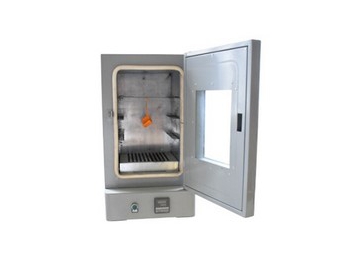

Powder Curing Oven COLO-4355-T
- Electric heating is faster to get the required temperature.
- High-precision controller allows to set accurate temperature and curing time.
- Automatic interruption system prevents over-heating during heating process to ensure high safety.
- Internal shelves could be disassembled for curing different sized objects.
| Model | COLO-4355-T | |
| Operating dimensions | W 450 x H 500 x D 350 mm | |
| Overall dimensions | W 500 x H 710 x D 500 mm | |
| Power supply | Electric, 3kW | |
| Voltage | 110V / 220V / 380V | |
| Frequency | 50-60 Hz | |
| Warm-up time | 10-15 min (180°C) | |
| Temperature stability | < ± 1°C | |
| Max. temperature | 250°C |
