This powder coating system is ideal for small batch coating production, which provides long-lasting and durable finishing film for alloy wheels, automotive accessories, etc. It consists of COLO-191S powder coating gun, COLO-S-2315 powder spray booth and COLO-1864 powder curing oven.

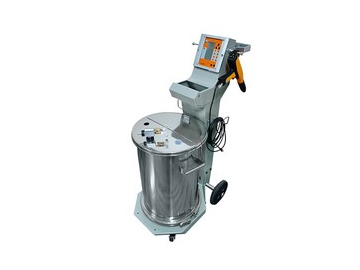

Powder Coating Machine COLO-191S

  • Suitable for powder coating any shapes of objects thanks to the powerful technologies.
  • Delivers smooth powder flow that creates uniform coating coverage even on the objects’ surfaces with depressions.
  • Intelligent controller with DVC (digital valve control) technology provides precise and repeatable powder output settings and other parameters, such as voltage, amperage and airflow.
  • 100kv powder spray gun maximizes the electrostatic charging, offering the highest transfer efficiency, and improving powder utilization.

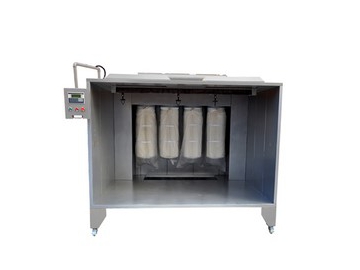

Powder Spray Booth COLO-S-2315

  • Made of durable powder coated steel, the powder spray booth requires less maintenance and saves operating cost.
  • High performance filter recovery system (combines 4 pcs cartridge filters) achieves efficient use of powder up to 98%.
  • Pulse-jetting filter cleaning system could prevent powder accumulation and extend service life of the filters.
  • Multifunctional PLC controller allows for setting or adjusting parameters in a convenient and precise manner.
Technical Specifications
Model COLO-S-2315
Operating dimensions W 2300 x D 1500 x H 1500 mm
Overall dimensions W 2750 x D 2070 x H 2180mm
Weight 580 kg
Power supply Electric
Nominal power 4 kw
Voltage 380V/220V
Frequency 50-60Hz
Filters Polyester
Filters no. 4pcs (D325*H900 mm)
Hang type filters Easy for change
Filter cleaning system Pneumatic
Air consumption 6600 m3/h

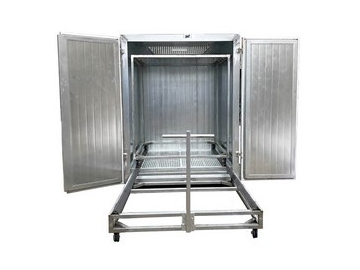

Powder Curing Oven COLO-1864

  • Electric heating provides high-quality and long-lasting powder finish in shorter curing time.
  • Oven wall is 100mm rock wool board with galvanized inner wall and color-steel external skins for high-performance insulation.
  • Circulation fan cycles hot air through the entire chamber, providing consistent and even powder coating finish.
  • Simple-operation PLC controller achieves safe and high-precision heating process.
Technical Specifications
Model COLO-1864
Operating dimensions W 1600 x H 1800 x D 1400 mm
Overall dimensions W 1900 x H 2200 x D 1700 mm
Power supply Electric, 18kW
Voltage 220V/380V
Frequency 50-60 Hz
Warm-up time 15-30min (180°C)
Temperature stability < ± 3-5°C
Max. temperature 250°C
Ventilation performance 805-1677m 3/h
Motor power 0.75kW
