COLO-S-04548-T

Features

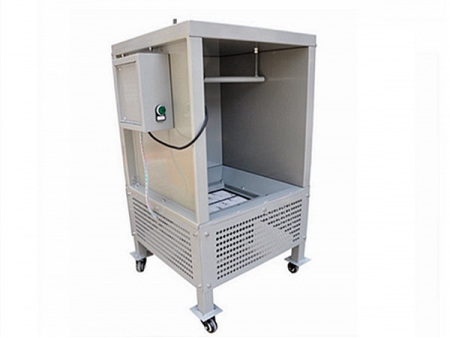

  • COLO-S-04548-T powder coating booth is mainly used for laboratory using or testing jobs, etc.
  • Space-saving structure is also friendly for powder coating in small working space.
  • Made of powder coated steel, the spray booth is durable and corrosion-resistant.
  • Featuring easy operation, the spray booth starts to operate after connecting with power supply and air source.
Specifications
Model COLO-S-04548-T
Operating dimensions 400 width x 480 depth x 500 height mm
Overall dimensions 535 width x 560 depth x 950 height mm
Weight 50 kg
Power supply Electric
Nominal power 50 KW
Voltage 380V/220V
Frequency 50-60Hz
Filters Polyester
Filter cleaning system Pneumatic
Air consumption 4000 m3/h
Details of the Lab Testing Powder Coating Spray Booth
  • The air in the workshop is drawn into filters via powerful fan, which drags the powder particles from the overspray towards filters for complete capture.
  • Built with high-precise filter in the bottom of booth to collect overspray powder, maintains a clean working environment.
  • Safe and simple operation via the user-friendly control panel, including power switch, fan start/stop switch, etc.
  • Work parts could be hung on the built-in hanger, making powder coating process more labor-saving.

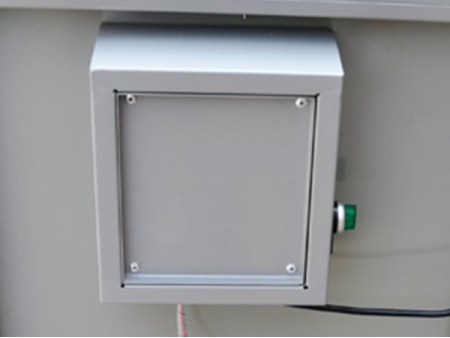

Electric Control Cabinet

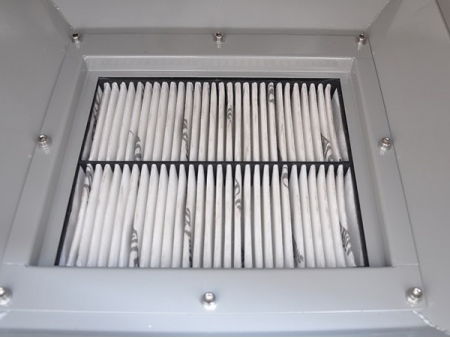

Filter

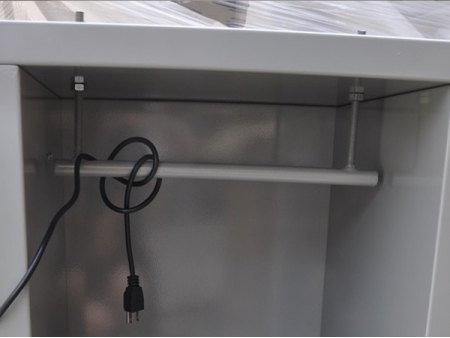

Hanging Bar

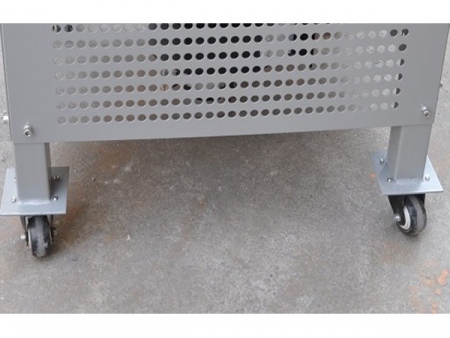

Spray Booth with Castors
