Single Crank Press (100-600 Tons), APF Series

Request a Quote

View All: http://stampingpress4u.com

Mechanical Press Machine | Metal Stamping Process | 100 - 600 Metric Tons Capacity

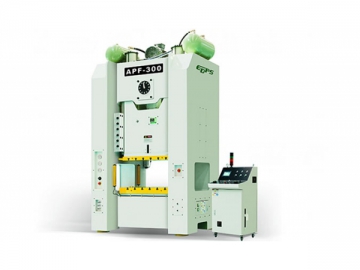

The APF series single crank press is a metal forming press with an incredible press capacity from 100-600 tons. This stamping press is produced in 8 different models with varying stamping capacities. The punching machine is so precise that it is categorized in the JIS 1 class, making it suitable for continuous sheet metal processing.

Performance features

1. Advanced European, American and Japanese technologies/functional structure including a CAE dynamic simulation optimized design
2. High-standard metal forming processes of such key parts as gears and axles through hard chrome plating/nitriding/grinding
3. High-standard fabrication processing of such key parts as gears and axles through hard chrome plating/nitriding/grinding
4. High-level configurations of high-performance controllers/drive parts/electromagnetic clutches/steam-driven elements and bearings
5. Technical grade international metalworking machine and inspection of machine index
6. High-response multi-functional superposition expansion/high-quality industrial control processor
7. High-memory module/individual design franchised software compilation
8. High-compatibility multi-axial variable speed drive/ onboard automation equipment expansion
9. Intelligent interface/high frequency real-time control/Ethernet & USB interface configuration

Standard configuration

1.Oil pressure overload protection device
2.Electric slide adjust device
3.Die height indicator (unit: 0.1 mm)
4.Slider and mold balancing device
5.Rotary cam switch
6.Crank angle indicator
7.Circulation centralization lubrication device
8.Electromagnetic stroke counter
9.Over-run safety device
10.Programmable controller
11.Mobile T-type operating floor
12.Air source connector
13.Independent electric control cabinet
14.Maintenance tool and tool box

Optional configuration

1.Die cushion
2.Upper slide feeding device
3.Die Light
4.Main motor inversion device
5.Photo-electric safety device
6.Safety groove and safety plug
7.Preset counter (6 digits)
8.Loading inspection device
9.Misfeed detection device
10.Frequency converter
11.Basic bolt and soleplate
12.Anti-vibration device
13.Safety shelf and safety ladder
14.Power socket
15.Quick die change device

Technical parameters of Single Crank Press

Name	Unit	APF-110		APF-160		APF-200		APF-260		APF-300		APF-400		APF-500	APF-600
Model		V	H	V	H	V	H	V H		V	H	V	H	V	V
Capacity	ton	110		160		200		260		300		400		500	600
Rated tonnage point	mm	6	3	6	3	6	3	7	3.5	7	3.5	9	4.5	10	13
Stroke	mm	180	80	200	90	200	100	250	150	300	170	300	200	250	250
Variable speed	s.p.m	30-60	60-90	20-50	40-70	20-50	50-70	20-40	40-50	20-40	35-50	15-25	20-35	20-30	15-20
Constant speed	s.p.m	50		35		35		30		30		20		20	20
Die height	mm	360	410	460	510	460	510	500	550	550	615	550	600	550	550
Slide adjustment	mm	80		100		110		120		120		150		120	120
Slide area	mm	1000×550×70		1100×600×90		1200×650×90		1300×700×100		1400×800×110		1500×850×110		1400×800	1400×1200
Bolster area	mm	1100×600×110		1200×800×140		1300×820×160		1400×840×180		1500×950×200		1600×1000×200		1500×1000	1700×1300
Side opening	mm	700×500		850×600		880×650		900×700		1000×750		1000×750		900×800	1000×900
Main motor	kwx p	11×4		15×4		18×4		22×4		30×4		40×4		55×4	75×4
Slide adjusting motor	kwx p	0.4×4		0.75×4		0.75×4		1.5×4		1.5×4		2.2×4		3×4	3×4
Air pressure	kg/cm²	6	6	6	6	6	6	6	6	6	6	6	6	6	6
Presses precision		GB/T23280-2009 ( JIS 1 class)

Download PDF
