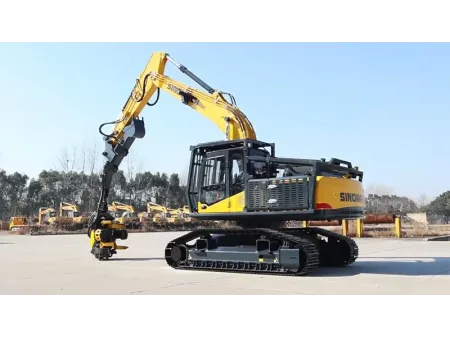

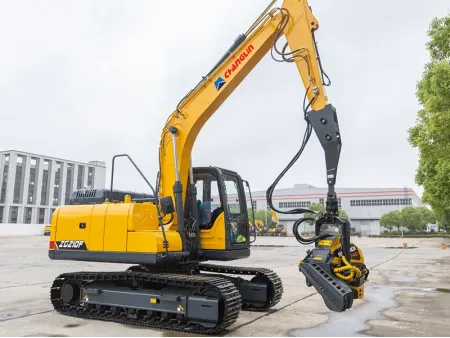

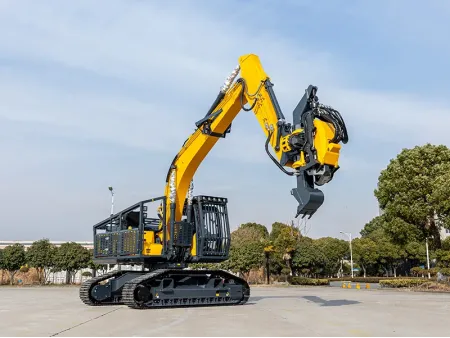

ZG210HF Feller Buncher Excavator
The feller buncher excavator is a multi-functional forestry excavator engineered for both felling and excavation tasks. Built on a modified excavator platform, it features a forest-specific undercarriage, an auxiliary arm for swift switching between logging and digging operations, and cold-weather adaptation packages for reliable performance in environments as low as -40°C.
- Operating weight 27300 kg
- Engine power rating 133.3kW@2000rpm
- Overall length 9630 mm
Equipped with a specialized forestry undercarriage featuring high ground clearance for improved obstacle navigation. Fitted with ski-style track guards and anti-derailment supports to offer full protection for the travel system.
Incorporates an auxiliary arm that enables seamless transitions between felling and excavation operations, significantly improving flexibility and job-site efficiency. A boom cylinder support is included to reduce the swing radius to 2816 mm, allowing for easy access in narrow forest paths.
Outfitted with an enlarged radiator system tailored to high-demand forest operations. Fine-mesh dust screens on the intake side door and roof intake prevent foreign matter from blocking the radiator.
Reinforced LED lighting has been added to increase visibility and ensure safe operation in dense and low-light woodland conditions.
- Model ZG210HF
- Operating weight 27300kg
- Engine model Cummins
- Emission standards NationⅡ
- Engine power rating 133.3kW@2000rpm
- Fuel tank capacity 420L
- Hydraulic oil tank capacity 225L
- Rated flow rate of hydraulic system 2*234L/min
- Gradeablity 70%
- Bucket digging force at power max (ISO) 100kN
- Hydraulic system pressure 34.3Mpa
- Max. working height 7844mm
- Max. working distance 7976mm
- Min. operating range 1960mm
- Hydraulic tank capacity 165L
- Overall length 9630mm
- Overall width 3440mm
- Overall height 3404mm
- Tail turning radius 2816mm
- Upper width 3000/3045mm
- Min. ground clearance 720mm
- Distance between idler 3650mm
- Center of sprocket 2620mm
- Track shoe width 600mm
