Recommended application
The hydraulic wheel excavator uses a 44kw engine that can work 6-10 times a minute, with maximum working efficiency of up to 80m3/min, mainly applied to construction and maintenance of urban and rural highways, cable laying, electric power and airport engineering, municipal construction, irrigation and water conservancy construction, rural housing construction, mining, etc.

The machine can be equipped with a variety of optional equipment, so as to meet different users’ working requirements.

Working range
Max. Digging Depth 3300mm
Max. Digging Height 5300mm
Max. Digging Radius 5700mm
Max. Dumping Height 3900mm
Technical parameters
Model of Engine 4102
Rated Power 44kW
Total Weight 5600kg
Bucket Capacity 0.28m3
Hydraulic System Working Pressure 20Kpa
Max. Flux 32ml/r
Work Efficiency 60-80m3/min
Working Times 6-10t/min
Grade ability 25%
Max. Hauling Force 27.4kN
Walking Speed 35km/h
Boom Rotation Angle 360°
Overall Dimension 6080*1980*2870mm
Wheel base 2000mm
Min. Ground Clearance 220mm
Detailed information

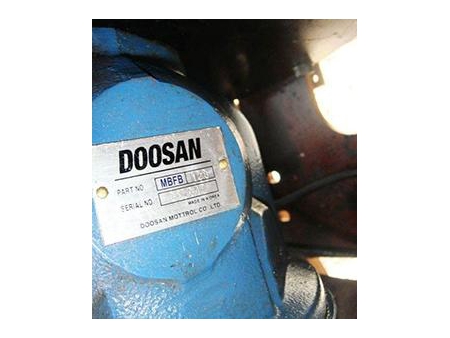

Doosan oil pump

1. The hydraulic systems all use the main pumps, valves originally imported from South Korea, thus the performance is reliable.

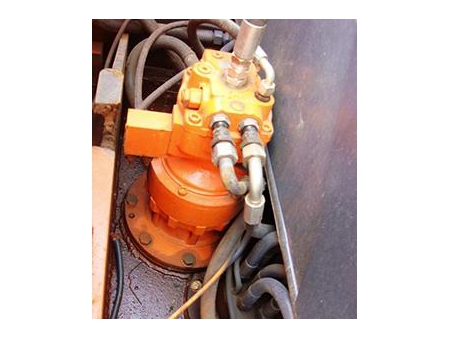

Doosan rotation device

2. The return system adopts Korean original imported rotation device, operating smoothly, portable and flexible.


Bulldozing plate

3. The prepositive bulldozing plate facilitates the finishing of the sites.

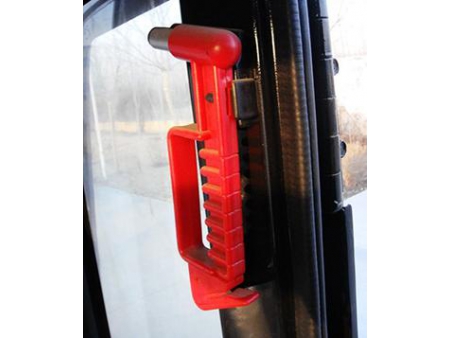

Safety hammer

4. The cab is equipped with a safety hammer.


5. The combined monitor with multi language and symbol display can more intuitively and accurately monitor the working status. The intelligent operating system maximizes the working efficiency and minimizes the fuel consumption.

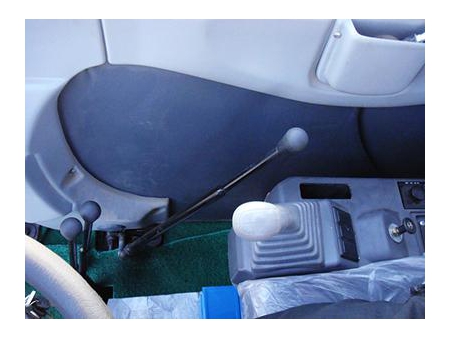

  • Dual operating levers

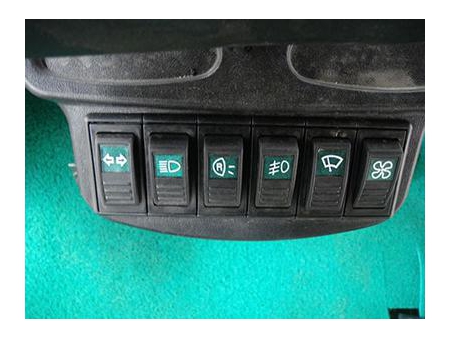

  • Switch

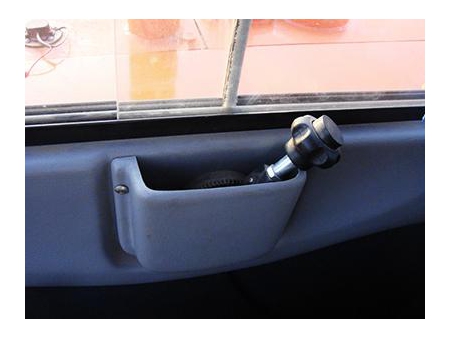

  • Manual controlled throttle

6. The low noise and low vibration comfortable seat, the spacious cab with stereo, and the air conditioning system satisfying four seasons working needs, create the "best driving environment".

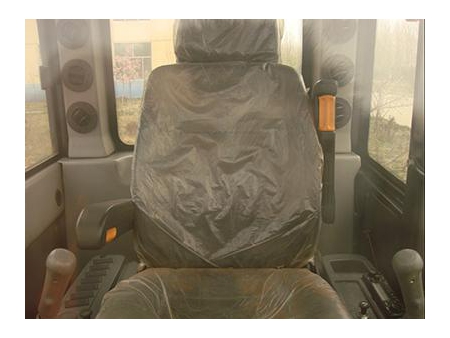

  • Driver's seat with armrest

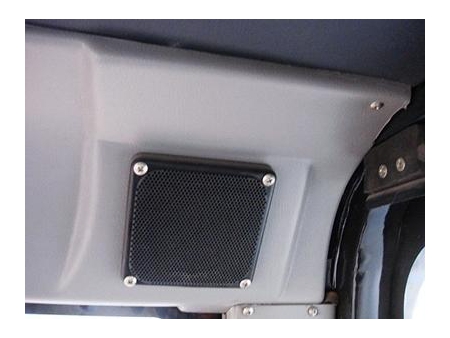

  • Stereo

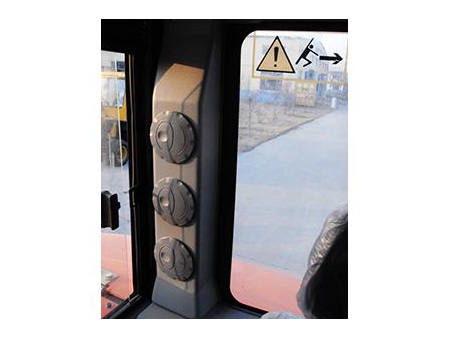

  • Air conditioning

7. The worktable controlled by microcomputer makes water temperature, oil temperature, current, work timing and other information be clear at a glance.


8. Rotatable oil tank facilitates refueling.


9. The oil return filter is set up in the return oil loop to ensure the hydraulic oil be clean.
