SZB1050S Carrier Bag Making Machine Manufacturer

SZB1050S Carrier Bag Making Machine

Request a Quote

View All: http://printingmachinecn.com

The SZB1050S carrier bag making machine utilizes single piece of paper, handle fixing roll paper, and paper string as raw material. The paper bag making machinery is capable of completing handle making, handle sticking, bag rim folding, bag body forming, accordion folding, bottom sealing, and compaction. It also supports the procedures of handle fixing paper sticking, bag rim folding, bag body forming, accordion folding, hole punching, bottom sealing, and compaction.

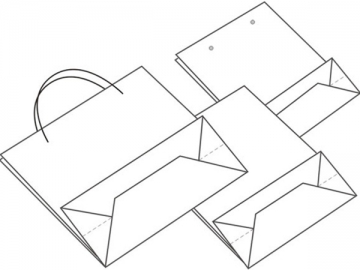

The multiple functions of the carrier bag making machine makes this product suitable for manufacturing paper bag for garment, shoes, and the external hand bag for luxury. The full automation is conducive to the high productivity of the carrier bag forming equipment.

Technical Parameters of Carrier Bag Making Machine

Applicable Paper	Kraft paper, art paper (including PE coated paper)
Max. Paper Size	1000×550mm
Min. Paper Size	540×350mm
Paper Gram Weight	90g-190g/m²
Height of Accordion Folding	80-150mm
With of Paper Bag	180-340mm
Handle Length	180mm
Handle Width	45mm
Handle Spacing	90mm
Total Power	15kW
Overall Dimensions (L×W×H)	16.1×5.1×3.1m
Production Capacity	45-55 bags/min
Machine Weight	16 tons
Glue	Water-soluble cold melt glue (Hot melt glue)

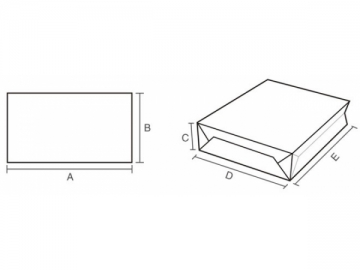

Paper Bag Specifications

Item	A	B	C	D	E
Max. Size	1000	550	150	340	490/435
Min. Size	540	350	80	180	250

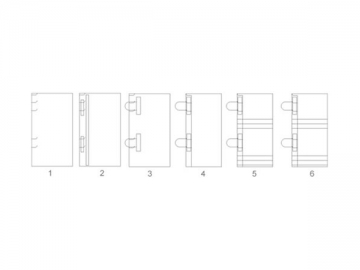

1. Cutting
2. Gelatinizing
3. Handle fixing
4 .Bag rim folding
5. Accordion line marking

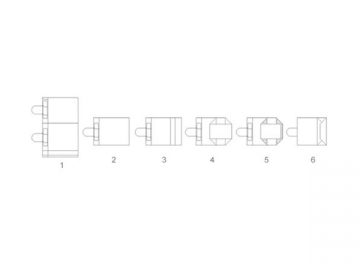

1. Accordion folding
2. Bag body folding
3 .Bottom folding line pressing
4. Bottom forming
5 .Gelatinizing
6. Bottom sealing

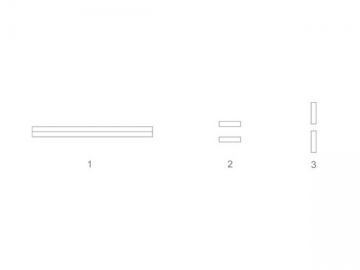

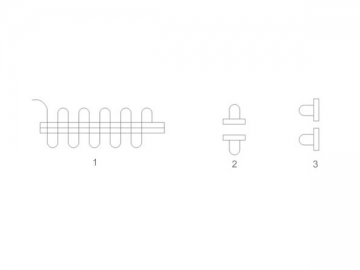

1. Handle making
2. Handle cutting
3.Handle positioning

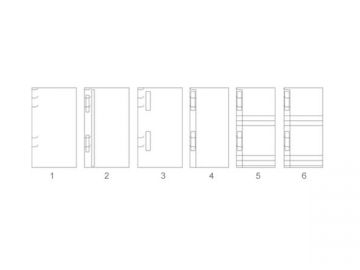

1. Cutting
2. Gelatinizing
3. Handle fixing
4. Bag rim folding
5. Accordion line marking
6. Gelatinizing

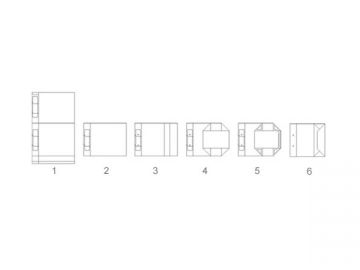

1. Accordion folding
2. Bag body folding
3. Bottom folding line pressing
4. Bottom forming
5. Gelatinizing
6. Bottom sealing

1. Handle fixer placing
2. Handle fixer cutting
3. Handle fixer positioning
