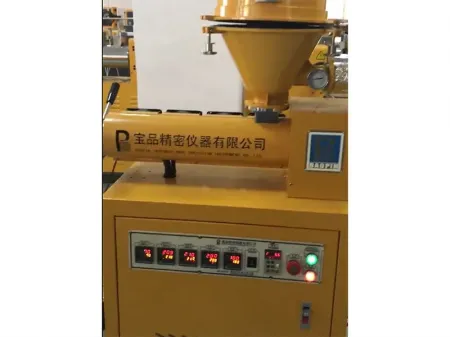

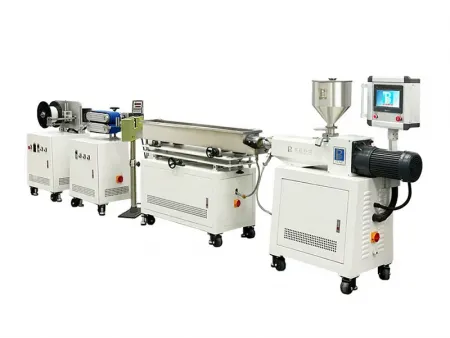

BP-8176-3D Laboratory 3D Filament Extrusion Line
Request a Quote
Laboratory single screw extrusion line for the production of 3D printing filaments made of different polymers
- Filament diameter: 1.75/3mm
- PLC control
- Screw diameter: 20mm (others on request)
- L/D ratio: 28:1
The laboratory 3d filament extrusion line is designed for the extrusion of pla, abs, and other 3d printing materials. It features uniform dispersion, plastification, and coloring, as well as filling and modification capabilities. Equipped with a 38crmoal chromium-molybdenum alloy screw with an adjustable speed range of 0-125rpm, it ensures high wear resistance and stable extrusion, making it perfect for 3d printing filaments, functional modified materials, and lab research applications.
Ready to bring your 3d printing projects to life? Explore how the laboratory 3d filament extrusion line can support your production needs.
Applications
The laboratory 3d filament extrusion line is ideal for producing:
- 3D printing filaments
- Modified engineering plastics
- Laboratory material research and development
Technical Data
- Temperature range
Room temperature to 300℃ - Screw diameter
20mm (others on request), with mixing and dispersing functions - L/D ratio
28:1 - Screw speed
0-125rpm, frequency conversion speed regulation - Screw Material
It is made of 38CrMoAl chromium-molybdenum steel. The surface is processed with tempering, nitriding, chroming, polishing, and super-precision grinding. Roughness Ra ≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Barrel Material
It is made of 45# carbon structural steel. The surface is processed with tempering, nitriding, chroming, polishing, and super-precision grinding. Roughness Ra ≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Heating Zone
Heater in 3 areas of the charging barrel, heater in 2 areas of the handpiece, external covered with a safety protective wind hood. - Cooling Device
3 groups of multi-wing fans with super-static forced air cooling. - Melt Pressure
0-40MPa high precision melt pressure sensor detects changes in head pressure, interlock loop control of the host running. - Melt Temperature
High precision melt temperature sensor monitors melt temperature changes. - Control System
PLC programmable color touch screen, man-machine interface operation system, can dynamically display and monitor the extrusion process, including temperature control, driving, speed, pressure, interlocking, and intercontrol function. - Safety Protection
The melt pressure is interlocked with the host for overpressure alarm protection; the melt temperature is interlocked with the host for low temperature start-up protection. - Power supply
AC380V, 50Hz, 3-phase 5-wire
