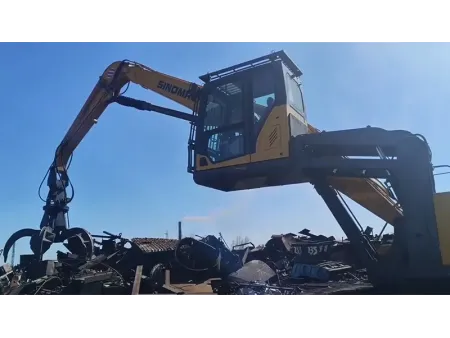

ZG210H Orange Peel Grapple Excavator
Designed for high-efficiency loading and stacking of timber and bulk materials, this excavator is ideal for forestry stations, sawmills, engineered wood factories, timber ports, biomass power stations, and transshipment yards. Its specialized grapple ensures smooth handling of irregular materials, optimizing throughput in demanding work environments.
- Power 124kW/2050rpm
- Working length 13 m
- Max. lift capacity 2900 kg
Advanced hydraulic system with optimized valve cores increases flow capacity, reduces pressure loss, and ensures smoother, more coordinated compound movements.
Optional fixed or height-adjustable elevated cab provides an extended line of sight over obstacles, improving operational accuracy and safety in complex environments.
Reinforced cab with full-protection mesh guards offers comprehensive operator safety during heavy-duty loading tasks.
High-intensity LED lighting system supports nighttime operations, with options to increase lighting units based on working conditions.
- Weight 26t
- Engine type Diesel
- Power 124kW/2050rpm
- Hydraulic system pressure 34.3Mpa
- Hydraulic system flow 2*222L/min
- Track shoe gauge 2380mm
- Working length 13m
- Max. dump height 11.5m
- Max. cab ground clearance 5500mm
- Max. lift capacity 2900kg
