KSZJ Portable Screw Air Compressor
Key Parameters
Working Pressure: 1.5(210)-3(435) Mpa (Psig)
Free Air Delivery: 15(530)- 37(1332) m³/min(CFM)
Power: 192(180)- 404(550) KW (HP)
-
1.KAISHAN KSZJ portable screw air compressor equips a patented main structure, which is specially designed for coping with the maximum working pressure of 40 bar. The rotor comes with patented shaped wire to offer higher efficiency. The air compressor features two-stage compression, providing a flexible design for the cone valve, heavy-duty design, SKF bearing, direct drive, excellent structure and no gear noise and high reliability. Besides, it comes with a dual working condition switching design, namely, users can set a 33 m3 and 25 bar or 26 m3 and 35bar working condition, and switching is convenient and fast.
-
2.The heavy-duty diesel engines are purchased from famous brands like Yuchai and Commins, which achieves better combustion during the engine operation. These engines have advantages of high reliability, strong power and fuel economy.
-
3.The up-to-date advanced cooling system, purchased from North America high efficiency cooling system research and development center, ensures the air compressor always in its best operating status. Besides, the independent oil, water- and air-cooling system, together with a large diameter fan, makes the air compressor suitable for cold and hot climates.
-
4.Three-stage air filter system.
-
1.KAISHAN portable screw air compressor adopts a reliable air flow control system. According to the air consumption, the inlet air volume is adjustable within the range of 0-100%. In addition, the accelerator of the engine is also adjustable to save fuel consumption as much as possible.
-
2.A microcomputer is installed to monitor the exhaust pressure, exhaust temperature, rotary speed, oil pressure, water temperature, fuel tank level and other operating parameters. It also has functions of automatic alarming and shutdown protection.
-
3.Multi-stage air filter allows the screw air compressor to work under dusty conditions. The multi-stage fuel strainer is specially designed to adapt the domestic fuel quality. Besides, the super oil/water cooler allows for the operation in high temperature and high pressure environment.
-
4.The wide access door enables it convenient to maintain the components, like air filter, fuel strainer, fuel tank, battery, oil cooler, etc. Therefore, the downtime is greatly reduced.
-

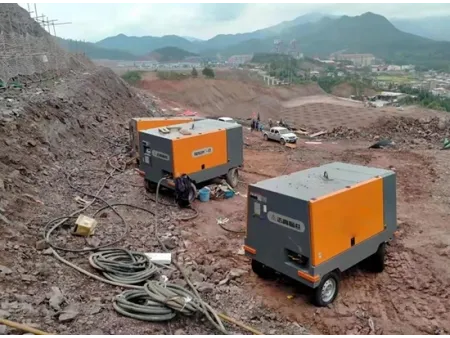

5.This portable air compressor is flexible to move even under harsh terrain conditions.
Model | Air capacity | Working pressure | Diesel engine | Weight | Size | Remark | ||
m³ | ||||||||
/min | cfm | Mpa | Psig | Kgs | (L*W*H) mm | |||
KSZJ-15/14.5 | 15 | 530 | 1.5 | 210 | Cummins 6CTA8.3-C260,192kw/180HP | 2500 | 3000*1520*1800 | Stationary |
KSZJ-18/17 | 18 | 636 | 1.7 | 247 | YuChai YC6M260L-K20,192kw/260HP | 3200 | 3000*1800*2000 | Stationary |
KSZJ-18/17A | 18 | 636 | 1.7 | 247 | YuChai YC6M162,162kw/220HP | 3200 | 3000*1800*2000 | Stationary |
KSZJ-29/23 | 29 | 1024 | 2.3 | 334 | YuChai YC6M395L-K20,290kw/395HP | 4800 | 3500*1950*2030 | Stationary |
KSZJ-29/23-32/17 | 29 | 1024 | 2.3 | 334 | YuChai YC6M395L-K20,290kw/395HP | 4800 | 3500*1950*2030 | Stationary |
KSZJ-31/25-34/17 | 31 | 1095 | 2.5 | 363 | YuChai YC6K500L,404kw/550HP | 4800 | 3500*2100*2200 | Stationary |
LGZJ-31/25-35/18 | 31 | 1095 | 2.5 | 363 | YuChai 294kW/400HP | 4800 | 3500*2100*2200 | Stationary |
LGZJ-37/25-41/17 | 37 | 1332 | 2.5 | 363 | YuChai 411kW/560HP | 6200 | 4250*2100*2500 | Stationary |
LGZJ-36/30-41/20 | 36 | 1296 | 3 | 435 | YuChai 411kW/560HP | 6200 | 4250*2100*2500 | Stationary |
LGZJ-36/30-41/20K | 36 | 1296 | 3 | 435 | Cummins 404kw/550HP | 6600 | 4250*2100*2500 | Stationary |
