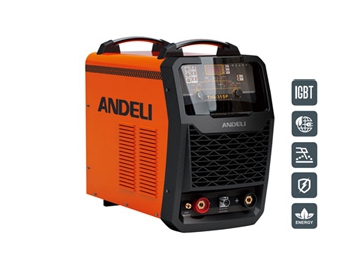

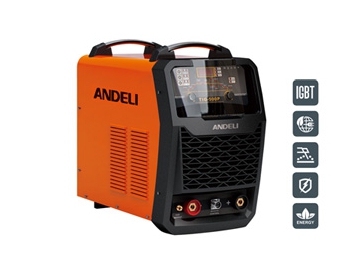

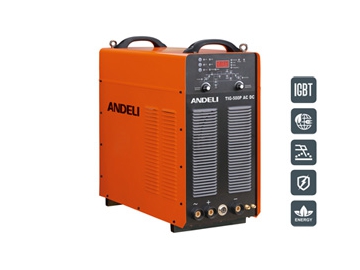

AC/DC TIG Welder (Digitally Controlled, Pulse Welding), WSME Series
Request a Quote
Features
- Multifunctional digital precise presetting;
- Protection function against water shortage of welding torch;
- TIG AC/DC constant current, AC/DC pulse, manual arc welding;
- AC frequency and clean width can be adjusted independently, suitable for various requirements of aluminum welding;
Standard Configurations
- Earth clamp 1pc
- Quick connector 2pcs
- Earth cable 3m
- Air-cooled welding torch 1pc (water-cooled welding torch is optional)
- Hex key 1pc
Technical Parameters
| Base metal | Thickness(mm) | Welding rod dia. (mm) | Welder model | Current adjustment(A) |
| Carbon steel, stainless steel, low-alloy steel | 1.5-5 | 2.5/3.2 | WSE-315 | 5-315 |
| 1.5-10 | 2.5/3.2/4 | WSE-500 | 5-500 |
| Model | WSME-315* (TIG-315P AC/DC ) | WSME-500 ( TIG-500P AC/DC) |
| Rated input voltage (V) | 3 phase AC380 ±15% | |
| Rated input current (A) | 20 | 39 |
| Rated input capacity (KVA) | 13 | 25.7 |
| Output current adjustment (A) | 5~315 | 5~500 |
| Duty cycle (%) | 1-100 | 1-100 |
| Pulse duration (%) | 1~100 | 1~100 |
| Arc starting | High frequency start | High frequency start |
| Net weight (kg) | 47.2 | 75 |
| Dimension (mm) | 642×323×573 | 777×380×830 |
