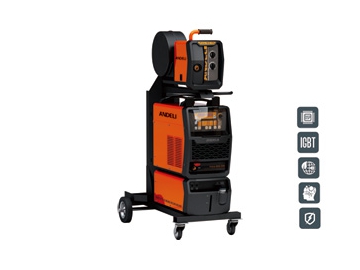

MIG/MAG Welding Machine (Digitally Controlled), DSP Series
Request a Quote
Features
- Utilizing full digital control, precise waveform control, realizing the transfer of one droplet per pulse;
- With IGBT inverter technology, integrating power supply, water tank and cart in one, featuring compact structure and easy to use;
- With built-in welding expert database, automatic intelligent combination of welding parameters; 100 sets of welding procedures can be stored for operating time saving;
- Friendly operation interface and centralized adjustment methods provide user with easy operation;
- Welding spatter is limited, ensuring good welding results;
- Special four-step function is suitable for welding of metals that have good thermal conductivity,
improving the welding quality when arc starting and arc stopping; - Full digital wire feeding control system ensures accurate and smooth wire feeding;
- Soft-switching inverter technology improves the reliability of the entire system while saves energy;
- Designed with protection functions for overcurrent, overvoltage, undervoltage, thermal overload, guaranteeing the reliability and safety of operation;
- Interfaces for automated welding, robot interface is optional;
Standard Configurations
- Earth clamp 1pc
- Gas flow meter 1pc
- Wire feeding machine 1pc
- Earth cable 3m
- Quick connector 3pcs
- Control cable 1pc
- Water-cooled welding torch 1pc
- Circulating water tank 1pc
- Model 350H/500H has 1pc of welding cart
Technical Parameters
| Base metal | Thickness (mm) | Welding rod dia. (mm) | Welder model | Output current adjustment (A) |
| Carbon steel, stainless steel, low-alloy steel | 1.5-5 | 0.8/1.0/1.2/1.6 | MIG-350 | 25~350 |
| 1.5-10 | 0.8/1.0/1.2/1.6 | MIG-500 | 25~500 | |
| 1.5-10 | 0.8/1.0/1.2/1.6 | P-MIG-350H | 25~350 | |
| 1.5-15 | 0.8/1.0/1.2/1.6 | P-MIG-500H | 25~500 |
| Model | MIG-350* | MIG-500* | P-MIG-350H* | P-MIG-500H* |
| Rated input voltage (V) | 3 phase 380V ±15% | |||
| Rated input current (A) | 25 | 46 | 25 | 46 |
| Rated input capacity (KVA) | 14.4 | 25 | 14.4 | 25 |
| Open circuit voltage (V) | 96 | 98 | 96 | 98 |
| Output current adjustment (A) | 25~350 | 25~500 | 25~350 | 25~500 |
| Output current voltage (V) | 14~40 | 14~50 | 14~40 | 14~50 |
| Duty cycle (%) | 60 | 60 | 60 | 60 |
| Efficiency (%) | 89 | 89 | 89 | 89 |
| Power factor | 0.87 | 0.87 | 0.87 | 0.87 |
| Net weight (kg) | 45 | 50 | 120 | 125.5 |
| Dimension (mm) | 642×323×573 | 642×323×573 | 1080×700×1450 | 1080×700×1450 |
