Internal Floating Roof

Request a Quote

View All: http://loadingarmsystem.com/9-internal-floating-roof.html

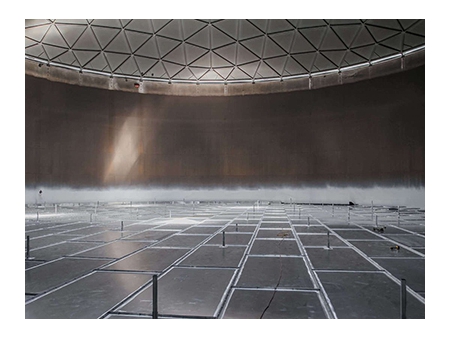

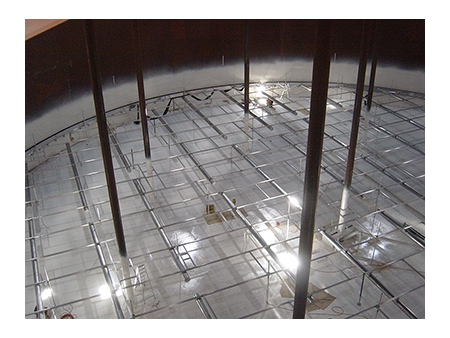

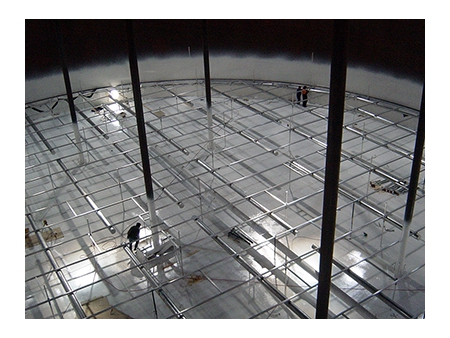

Internal floating roof is eco-friendly system that floats on the surface of liquid stored inside the storage tank. It rises or falls with the utilization of buoyancy, greatly yielding energy savings. This internal floating roof aims at controlling liquid volatilization, preventing energy loss, as well as minimizing environmental impacts. With the installation of the internal floating roof, the temperature inside the liquid storage tank decreases therefore resulting in less energy consumption and better environmental protection.

Specifications

Structure Type	Pontoon type internal floating roof
Liquid Medium	Oil, chemicals and volatile liquids
Storage Tank Diameter	3m ~60m
Material	Aluminum alloy, stainless steel
Seal Type	Single layer wiper seal, single layer foam seal, double layer seal
Seal material	Nitrile rubber (NBR), EPDM, PTFE, fluorine rubber
Tank working pressure	Positive pressure: 1961Pa Negative pressure: 490Pa
Energy consumption reduction	≥95%
Buoyancy	Supporting at least twice the dead weight of floating roof
Pontoon diameter	Aluminum pontoon: 185mm Steel pontoon: 260mm
Floating Roof Height	1700mm~1800mm
Lifespan	15 years under normal operation
Rim space (area between internal floating roof and tank shell)	50±20mm

Features

Unique Hexagonal Structure
This newly developed internal floating roof features a spider web-like hexagonal structure that offers higher structural strength and more stability in comparison with conventional structure with same weight of materials. Thanks to the damping property of the hexagonal structure, the shock wave will be efficiently reduced.
Reasonable Pontoons Arrangement
Because smaller size pontoons are utilized, this internal floating roof has more quantities of pontoons that are distributed reasonably and uniformly. The intensive layout of pontoons effectively avoids issues of floating roof tilting, significantly improving operation stability.
Since the pontoon has a smaller size, the gap between pontoons and floating roof deck is reduced therefore resulting in a good damping effect to absorb the upward force and shock when the floating roof in motion.
Superior Aluminum Pontoons
The pontoons of the internal floating roof are made of seamless aluminum pipe, greatly reducing the risk of leakage.
High Energy Efficiency
The structure design of the internal floating roof helps reduce evaporation of the stored medium of over 98%, ensuring a safe operation with minimal environmental impact.
High Utilization Rate of Storage Tank
Due to its small liquid-gas space which is less than 90mm throughout its full thickness of 300mm, this internal floating roof allows for more storage volume compared to other types of floating roof.
Simple Installation, Low Maintenance Cost
This internal floating roof can be quickly installed with bolts, eliminating the need for welding, enabling it particularly suitable for retrofitted tanks. The main parts are made with standard molds, ensuring good interchangeability and versatility.
Guaranteed Safety Performance
Electrostatic discharge is based on a standardized control, resulting in no potential electrostatic hazards and no need to weld, thus ensuring the safe operation of floating roof.
