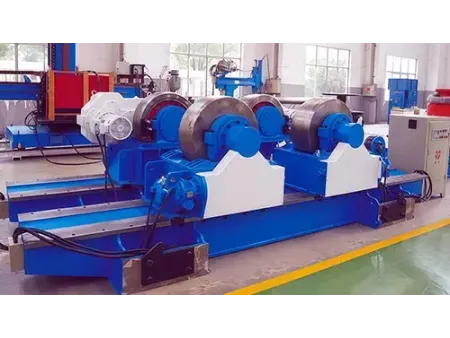

Anti-Drift Turning Rolls
Swing-Roller Anti-Drift Turning Rolls

Anti-drift turning rolls support and rotate cylindrical workpieces, keeping thick-walled or narrow-gap cylinders stable and preventing axial movement. They are available in single-lift, dual-lift, or swing-roller configurations, which hold the workpiece centered as it turns.  The compact frame of these turning rolls keeps the workpiece rotating steadily, and the anti-sway system from China prevents it from drifting more than ±1.5–2 mm, making welding, grinding, lining, or assembly safer and more precise.

Specifications
Model Max. Load (t) Working Range (mm) Roller Diameter×Width (mm) Motor Power (kW) Roller Linear Speed (m/h)
Rubber roller Metal roller
HGFK40 40 ⌀600-4200 ⌀400×120 ⌀394×60 1.1×2 6–60 m/h,
VFD (Variable Frequency Drive, stepless adjustment)
HGFK60 60 ⌀750-5000 ⌀450×120 ⌀444×70 1.5×2
HGFK100 100 ⌀800-6000 ⌀550×120 ⌀544×100 2.2×2
HGFK160 160 ⌀1000-6000 - ⌀620×220 3×2
HGFK250 250 ⌀1000-7000 - ⌀700×260 4×2
HGFK400 400 ⌀1000-7500 - ⌀800×300 5.5×2
HGFK500 500 ⌀1000-8000 - ⌀800×300 7.5×2
HGFK630 630 ⌀1000-8500 - ⌀850×350 11×2
HGFK800 800 ⌀1500-9000 - ⌀900×350 15×2
HGFK1000 1000 ⌀1500-10000 - ⌀950×350 15×2
HGFK1250 1250 ⌀2000-15000 - ⌀1100×400 22×2
HGFK1600 1600 ⌀2000-15000 - ⌀1200×400 30×2
