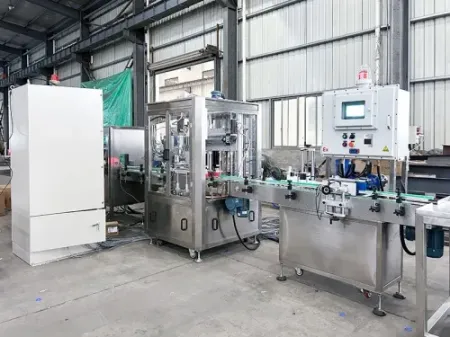

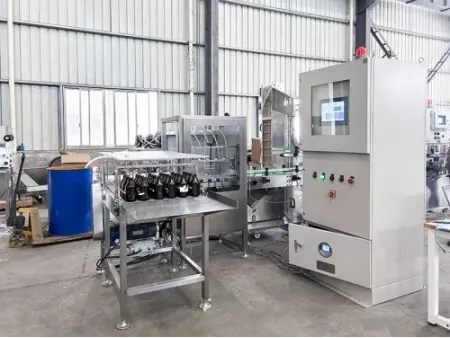

Automatic Bottle Filling Machine

Filling speed: 800-1500 bottles/hour (depending on material properties and bottle volume)
Filling method: gravimetric filling
Conveyor type: linear conveyor
Filling range: 300ml-1L (glass bottle)
Number of filling stations: 6-10
Max. weighing capacity: 5kg
Scale interval: 1g
Filling accuracy: ±0.2%
Operating temperature: -10℃ to 40℃
Power supply: 380V, 50Hz (or customized)
Air supply: 0.4-0.6MPa
Explosion-proof configuration is optional for operation in hazardous areas and explosive environments
Equipment dimensions: height not exceeding 2m, length and width are customized according to site layout (if configured with case packing and palletizing system, height not exceeding 3.5m)

• High degree of automation, significantly reducing labor costs.
• Supports bottle sizes from 300ml to 1L, enabling multiple container types to be processed on a single system.
• Gravimetric filling ensures accurate metrology and stable dosing performance.
• Ideal for large-scale production requiring digital integration, stringent safety standards, and environmental compliance.
• Engineered for chemical reagents and liquids that are volatile, chemically unstable, highly staining, or toxic and hazardous.

The bottle filling machine is suitable for high-viscosity materials, toxic and hazardous substances, and flammable or explosive products in controlled industrial environments.
