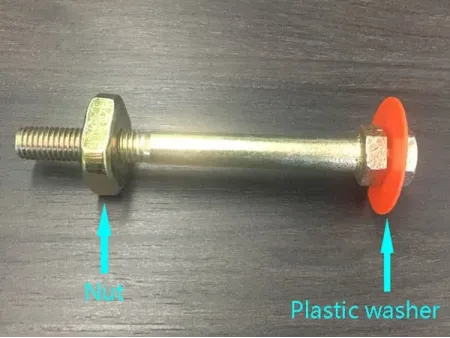

Busbar Joint Fasteners and Hardware
Request a Quote
Bolts
Specifications
| Size | Grade | Square Nut Size | Thread Length | Torque | Color |
| M12*115 | 8.8 | 30*30mm/27*27mm | 45-65mm | 70–90N.M | Zinc Yellow/Zinc White |
| M12*120 | 45-65mm | ||||
| M12*125 | 45-65mm | ||||
| M12*130 | 45-65mm | ||||
| M12*140 | 45-65mm | ||||
| M12*165 | 45-65mm |
Self-Piercing Rivets
Specifications
| Rivet-06 | 5*6mm | Semi-tubular rivet |
| Rivet-08 | 5*8mm | |
| Rivet-09 | 5*9mm | |
| Rivet-10 | 5*10mm |
Hex Nut (Double Head)
Specifications
| Size | M12 |
| Torque | 70-90N.M |
| Color | Zinc Yellow/Zinc White |
| Surface Finish | Galvanized/chrome plated |
Belleville Washers (Disc Spring Washers)
Specifications
| Size | Material | Center Hole Diameter | Surface Finish |
| Ø37.3mm | 65Mn | Ø8.5mm | Galvanized |
| Ø60.4mm | 65Mn | Ø13mm | Dacromet |
| Ø74.4mm | 65Mn | Ø13mm | Dacromet |
| Ø75.5mm | 65Mn | Ø13mm | Dacromet |
| Ø76.5mm | 65Mn | Ø13mm | Dacromet |
| Ø80.4mm | 65Mn | Ø13mm | Dacromet |
| Ø90.6mm | 65Mn | Ø13mm | Dacromet |
