Butyl Tape Production Line
Request a Quote
Complete coating line for butyl tape production

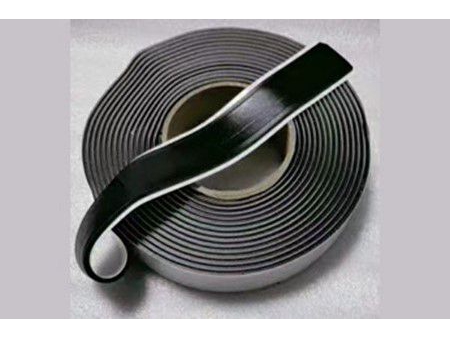

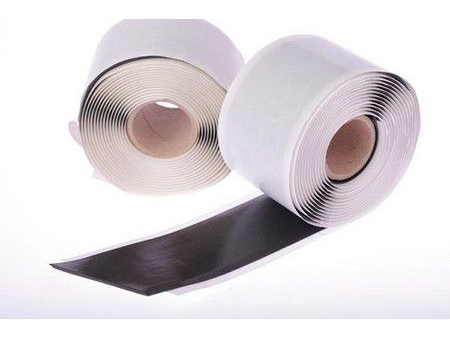

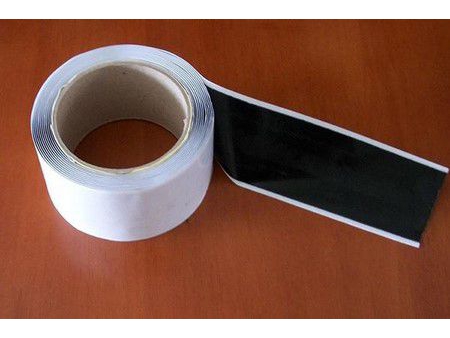

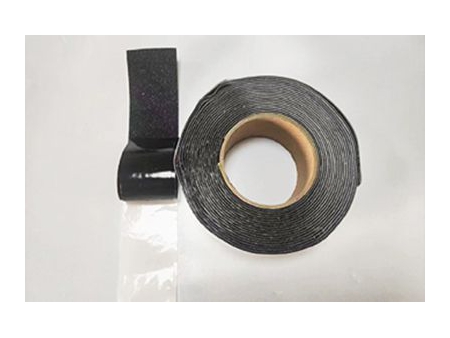

The butyl tape production line primarily produces butyl tape, waterproof patches, leak stop tape, anti-corrosion tape, and butyl overlap tape. It can also produce PVC and SBS self-adhesive waterproofing membrane. High-precision dynamic balancing equipment ensures smooth operation with low noise and no wrinkle of the product. Coating speed and adhesive supply speed can be manually adjusted or automatically synchronized.
Specifications
| Model | JYJ |
| Coating Width | 400-3000mm |
| Coating Weight | 100-6000g/m² |
| Coating Speed | 1-50m/min |
| Unwind Diameter | 1000mm |
| Rewind Diameter | 700mm |
| Web Guide System | 1 set |
| Length | 7500mm |
| Height | 1600mm |
Parameters can be adjusted according to specific customer requirements.
Features
- Coating speed and adhesive supply speed can be manually adjusted or automatically synchronized.
- Intelligent PID temperature control system, ensuring an error within 1℃.
- All active rollers and passive guide wheels have been corrected by high-precision dynamic balancing equipment. With well-arranged assembling process, the machine runs smoothly with low noise, preventing composite materials from wrinkling and thus ensuring excellent production quality.
- High-precision alloy applicator head and gear metering pump ensure high coating quality.
Main Components
- Automatic winding mechanism
- Glue mold
- The isolation film composite mechanism of the coating machine
- Device Backcoating device
- Automatic feeding system of gluing machine
- Waterproof material production equipment automatic sand mechanism
- Automatic deviation correction hydraulic unwinding machine
