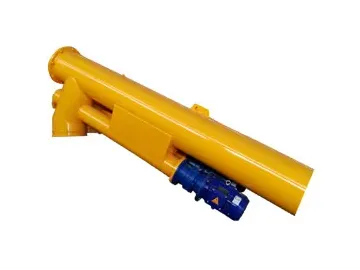

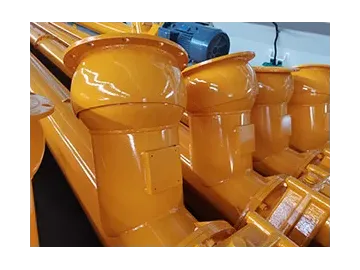

Cement Screw Conveyor
Cement auger for concrete batching plant
The cement screw conveyor features a housing made of high-quality steel pipes. Each section is connected by flanges. The conveying screw adopts a variable-pitch blade design, allowing smooth and stable powder material conveying. A universal joint is included as standard, facilitating on-site installation. The screw conveyor can be optionally equipped with a precision twin screw system to meet the high-accuracy batching requirements of concrete mixing plants.
Technical Parameters
| Model | | | | | |
| Screw tube diameter (mm) | ø168 | ø219 | ø273 | ø325 | ø407 |
| Conveyed material | Cement, admixture | Cement, admixture | Cement, admixture | Cement, admixture | Cement, admixture |
| Conveying capacity (T/h) | 20 | 40 | 80 | 100 | 170 |
| Inclination angle | 0-35° | 0-35° | 0-35° | 0-35° | 0-35° |
| Screw length (m) | 6/9/12 | 6/9/12 | 6/9/12 | 9/12 | 9/12 |
| Motor power (kW) | 5.5/7.5/11 | 7.5/11/15 | 11/15/18.5 | 18.5/22 | 30/37 |
