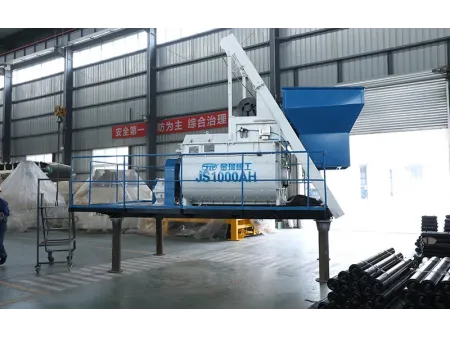

Twin Shaft Concrete Mixer with Skip Hoist
JS-AH Series for Concrete Plants
- Discharge Capacity 0.5 – 1.5 m³ / batch
- Key Feature Self-loading design for compact, rapid deployment
The twin-shaft concrete mixer with skip hoist combines the powerful mixing performance of the standard JS series with a space-saving skip hoist feeding system. It utilizes wire rope hoisting to transport aggregates directly into the mixing drum, eliminating the need for long belt conveyors.
This mixer features a dual-shaft compulsory mixing mechanism, ensuring strong mixing intensity and high uniformity for various concrete types. The integrated hoist design makes it particularly suitable for construction sites with limited installation space. It offers a compact structure, reliable operation, and high efficiency, serving as the ideal core engine for compact batching plants.
Technical Parameters
| Model | | | |
| Charging capacity (L) | 1125 | 1500 | 2250 |
| Discharging capacity (L) | 750 | 1000 | 1500 |
| Theoretical capacity (m³/h) | 35 | 50 | 75 |
| Max. aggregate size (mm) | 60 | 80 | 80 |
| Mixing motor power (kW) | 30 | 37 | 45 |
| Hoist motor power (kW) | 7.5 | 11 | 18.5 |
| Water pump motor power (kW) | 2.2 | 2.2 | 2.2 |
| Transport dimensions (L×W×H, mm) | 4100×2170×2400 | 4850×2380×2750 | 5100×2380×2700 |
| Discharge height | 2.2m standard/raised height for mixer truck loading | ||
Main Components
Hoisting Gear Reducer
The mixer uses an electric winch hoisting mechanism with conical rotor motor braking, ensuring smooth and reliable operation.
Pneumatic Discharge Gate
A valve-controlled pneumatic discharge system features a simple structure and easy maintenance.
Mixing Gear Reducer
Equipped with an in-house developed dedicated mixing reducer, providing smooth operation and strong overload resistance.
Automatic Lubrication
An optional automatic lubrication system eliminates the need for frequent manual greasing, significantly improving shaft-end lubrication performance and extending service life.
