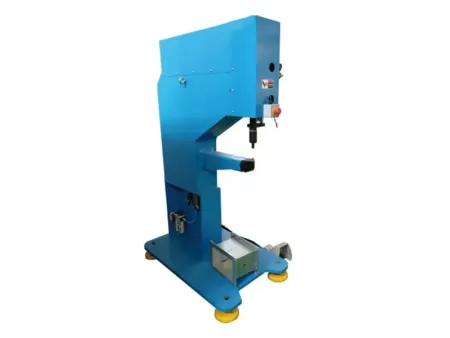

Clinching Press (Compact Type 8-Ton HVAC Duct Clinching)
Request a Quote
- Pressing Force 78kN/156kN
- Throat Depth 500mm
- Daylight 45mm

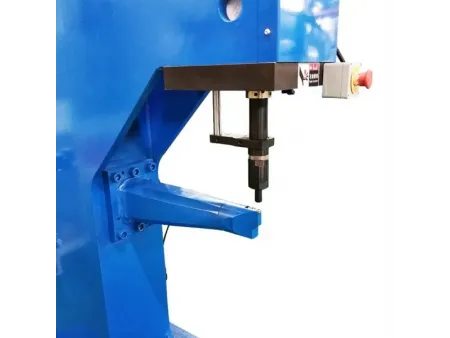

The LTC clinching press features an integrated cylinder design specifically engineered for ductwork and sheet metal joining. Compared to the TCEU series, the LTC model offers a deeper throat and a slimmer clinching arm with a minimum diameter of only 85mm. Its reduced overall machine height makes it an ideal "space-friendly" solution for workshops with height constraints or specialized assembly layouts. Customization options are available to meet unique production requirements.
Dimensions
| Model | Max. Capacity | Throat Depth (mm) | Daylight (mm) | ||
| kN | T | ||||
| LTC08-01 | 8 | 78 | 7.8 | 500 | 45 |
In stamping light-gauge metal parts, how does fast approach contribute to productivity?
In stamping light-gauge metal parts, how does fast approach contribute to productivity?
The system utilizes a pneumatic fast-approach during the idle stroke phase, which significantly reduces individual cycle times and maximizes throughput.
In automated press stations operating around the clock, how is durability addressed?
In automated press stations operating around the clock, how is durability addressed?
All critical components are engineered for continuous, high-duty operation, making the unit ideal for the rigorous demands of 24/7 production environments.
