Sheet Metal Clinching Machine

Request a Quote

Website: http://ductmachine-en.com/5-11-sheet-metal-clinching-machine.html

MJ-1.2

Button lock machine for joining metal sheets together without screws or rivets

MJ-1.2

Button lock machine for joining metal sheets together without screws or rivets

Applications

The rivet-less clinching machine is ideal for clinching of refrigerator / air conditioner housings, washing machine brackets, inner car door panel brackets, instrument housings, and similar applications.

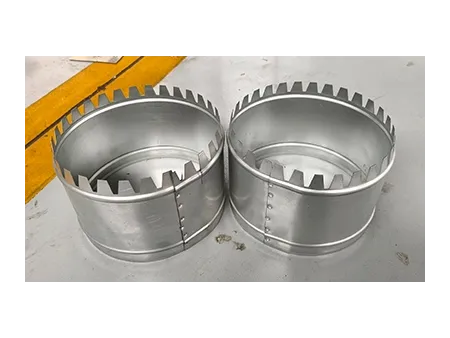

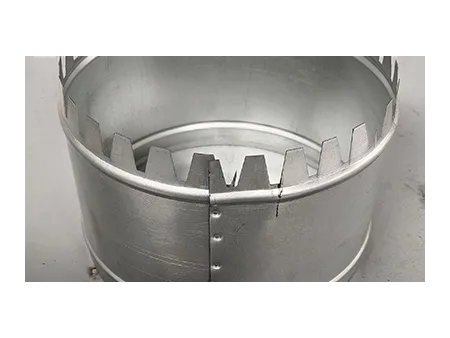

Applicable Round Duct Pipe Sizes

Round pipe diameter	Die insertion length into pipe
80mm	50mm
100mm	120mm
125mm	175mm
150mm	210mm
200mm	270mm
230mm	380mm

Specifications

Clinching length400mm (unidirectional)
Thickness range0.4-1.2mm
Power systemAir-hydraulic booster cylinder
Power system (Air pressure)0.4-0.8MPa
Power system (Max. hydraulic pressure)5000kg
Forming die materialSteel
Machine weight220kg
Machine dimensions (Length)800mm
Machine dimensions (Width)700mm
Machine dimensions (Height)1800mm
Total powerUp to 100W
Power supply220V/50Hz/2Ph (one neutral, one live)
415V, 400V/50-60Hz/2Ph (two live wires)
ControllerPLC
DiesFive sets: 0.3-0.4mm, 0.5-0.6mm, 0.7-0.8mm, 0.9-1.0mm, 1.1-1.2mm

Features

The rivet-less clinching machine is used for joining metal sheets, capable of clinching 0.4-1.2mm thick metal sheets. The corresponding punch can be changed to suit different sheet thicknesses.

Sheet metal joining uses no welding materials, making the process cost-effective and highly efficient.

Simple and easy to operate, making the industrial production process more efficient, especially the air duct fabrication process.
