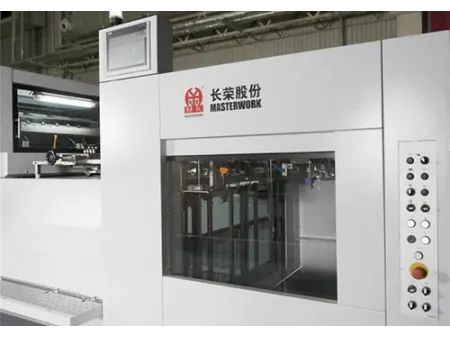

Duopress Power 106CSB
Watch Video
Duopress Power 106CSB die cutting machines are used for paperboard packaging sheets that require die cutting, embossing, stripping, and finished blank separation in one process. The dual-station structure can be arranged according to the product layout, so different post-press steps can be completed without moving the sheets between separate machines. Capable of processing a 1060 mm format, these die cutters process paper and cardboard from 90 to 2000g/m² and can reach up to 7,000 cycles/hour for high-output packaging converting.
Technical Parameters
| Suitable Materials | |
| Paper (Min.) | 90 g/m² |
| Solid Cardboard (Max.) | 2000 g/m² |
| Corrugated Cardboard (Max.) | 2 mm |
| Operating Parameters | |
| Max. Sheet Size | 745 × 1060 mm |
| Max. Die-Cutting Pressure | 2.6 MN / 260 t |
| Max. Machine Speed | 7000 sheets/hour |
| Pile Heights, Including Pallet | |
| Max. Feeder Pile Height | 1650 mm |
| Max. Delivery Pile Height | 1300 mm |
| Overall Dimensions (L × W × H) | 12250 × 6160 × 2760 mm |
| Compressed Air Requirements | Pressure: 0.55–0.7 MPa; flow rate: 0.8 m³/min |
Main Configuration
Feeding Unit
- The synchronous belt drive requires little maintenance and keeps sheet feeding steady during operation.
- Rollers and brushes can be adjusted from one central point for easier feeder setup.
- Main and auxiliary feeding are servo driven for better timing during sheet transfer.
- Automatic lateral pile adjustment keeps the sheet stack aligned before feeding.
- The feeder can be adjusted automatically according to the job setup.
- Ultrasonic double-sheet detection checks the sheet flow before it enters the next section.
- MasterSet improves sheet alignment before cutting, embossing, and blanking.
- Optional Master Feeder can be added for automated sheet pile handling at the feeding section.

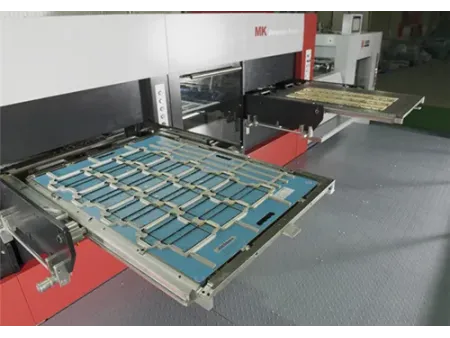

Die Cutting Units
- Unit I is used for embossing and includes 4 heating zones, while Unit II handles die cutting.
- The registration system checks sheet position before processing, so embossing and die cutting stay aligned with the printed sheet.
- Cutting pressure is adjusted by servo control according to the material, sheet thickness, and job requirements.
- Pneumatic locking secures the die-cutting chase and cutting plate during setup and operation, reducing manual locking work.
- The second-generation gripper bar works with an optimized drive curve to keep sheet transfer stable at higher running speeds.
- The combined lower support plate provides a steady base for both embossing and die cutting.
- If a sheet is not in the correct position, the gripper opening mechanism prevents it from entering the cutting area incorrectly, reducing the risk of miscuts or sheet damage.
Stripping Unit
- The registration system keeps the sheet positioned before waste removal.
- Quick-lock systems are used for the top, middle, and bottom stripping tools to shorten setup time.
- Tool position can be adjusted with position indicators as a setup reference.
- The upper stripping chase lifts pneumatically for easier tool access and adjustment.
- The gripper bar positioning device keeps sheet transfer more stable before stripping.
Blanking Unit
- Integrated quick-lock systems shorten tool changes for the blanking section.
- Tool position can be adjusted with position indicators for easier setup.
- Non-stop operation keeps finished blanks moving out while production continues.
- The separator sheet inserter places sheets between finished stacks for easier batch counting and handling.
- The registration system keeps blanks positioned before separation and delivery.
- The blanking station works with European standard 1200 × 800 mm pallets.
Test Sheet Removal
- Operators can remove test sheets during production for quality checks.
- Sampling can be done without stopping the production process.
- The servo-driven damping brush controls sheet movement during sampling and delivery.
Control System
- The Siemens control system manages the main operating functions.
- Equipped with a Siemens color touchscreen gives operators access to machine settings and running status.
- The interface is easy to use, so operators can find the main controls quickly during production.
- Duopress Power 106CSB is GS certified and meets recognized safety requirements for operation.
