Flexible Textile Self-Closing Wrap
Request a Quote
ST2103
- Material: Polyester (PET)
- Color: Black
- Operating Temperature: -40°C to 150°C
- Flame Retardancy:
- Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
- Abrasion Resistance: Grade 4
- Melting Point: 240 ±10°C
- Cutting Method: Hot cutting
- Packaging: Paper reel
Now

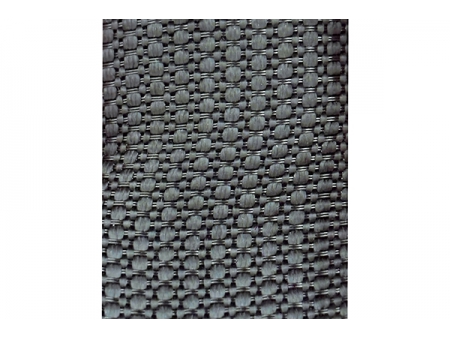

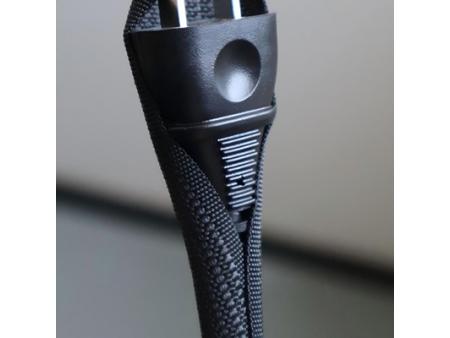

ST2103 series is a flexible textile self-closing wrap woven from PET monofilament and multifilament yarns. It allows for fast and efficient wire harness bundling. With good abrasion resistance to effectively protect cables from external wear and damage.
Applications
This self-closing wrap is widely used for automotive wire harness protection, including engine compartment harnesses, pipelines, and hoses.
Certifications
Parameters
| Model | Diameter (mm) | Application Range (mm) | Packaging Length (m/reel) |
|---|---|---|---|
| 5 | 2~6 | 200 | |
| 8 | 6~9 | 100 | |
| 10 | 9~11 | 100 | |
| 13 | 11~15 | 100 | |
| 16 | 15~18 | 100 | |
| 19 | 18~23 | 50 | |
| 25 | 23~28 | 50 | |
| 29 | 28~31 | 25 | |
| 32 | 31~34 | 25 | |
| 38 | 34~42 | 25 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
