Orange Adhesive Textile Self-Closing Wrap
Request a Quote
LSW2102
- Material: Polyester acrylic adhesive
- Color: Orange
- Operating Temperature: -40°C to 150°C
- Flame Retardancy:
- Finished product: Complies with FMVSS 302 (burn rate < 100 mm/min)
- Abrasion Resistance: 5,000 cycles (tested based on ISO 6722-1 methods)
- Cutting Method: Hot cutting
- Packaging: Paper reel
Now

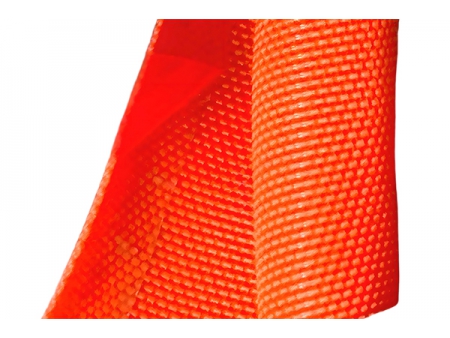

LSW2102 series is an adhesive-backed self-closing wrap manufactured from a polyester monofilament and multifilament textile base with an acrylic adhesive layer. Its orange color is specifically designed to meet the identification requirements for high-voltage wire harnesses in new energy vehicles. The self-closing structure allows for easy installation, and the integrated adhesive backing enables full closure without requiring additional tape.
Applications

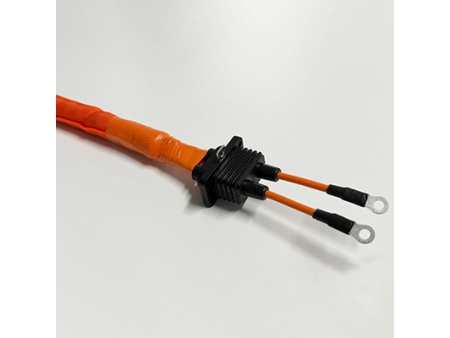

This self-closing wrap is widely used for high-voltage wire harnesses in new energy vehicles, as well as in other cable protection applications that require clear identification, reliable mechanical protection, and fast installation.
Certifications
Parameters
| Model | Diameter (mm) | Thickness (mm) | Packaging Length (m/reel) |
|---|---|---|---|
| 10 | 0.6±0.15 | 100 | |
| 13 | 0.6±0.15 | 100 | |
| 16 | 0.6±0.15 | 100 | |
| 19 | 0.6±0.15 | 50 | |
| 25 | 0.6±0.15 | 50 | |
| 29 | 0.6±0.15 | 25 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
