Handheld Laser Engraver

Handheld Laser Engraver
Handheld Laser Engraver
Handheld Laser Engraver
Request a Quote
  • Laser power: 20W
  • Laser wavelength : 1064nm
  • Precision: ±0.003mm
  • Speed: 0-8000mm/s

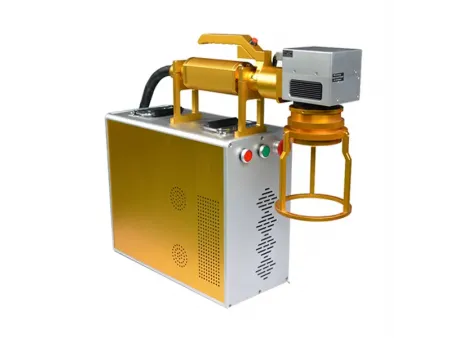

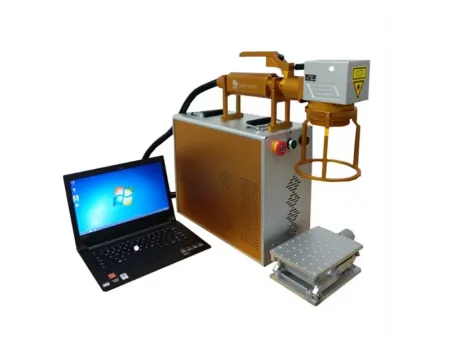

The handheld Mini Fiber Laser Marking Machine adopts advanced digital high-speed scan galvanometer and module design that separate laser generator and lifter, which is not only a small volume, quick speed, but easily marks on the big object’s surface. Widely used in food and beverage, leather, packaging, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.

Technical Data
Model LS-YLP-20L 30L 50L
Voltage 110V/220V
Fiber Laser Source Maxphotonics (JPT /IPG laser optional)
Output Power 20W
Laser wavelength 1064nm
Modulation frequency range 20-100kHz
Speed 0-8000mm/s
Precision ±0.003mm
Minimum line width 0.015mm
Minimum height of characters 0.15mm
Cooling way Air cooling
Marking range 110x110mm(150x150mm / 200x200mm optional)
Laser power supply 0.5KW,220V/50Hz, 110V/60HZ
Software Auto-cad, CorelDraw, Photoshop software compatible
Rotary device Optional Computer system:Windows xp,Windows 7 32bits
Weight 55KGS
Wooden case packing size 78*45*48cm
Packing weight 65KG
Sample Show
