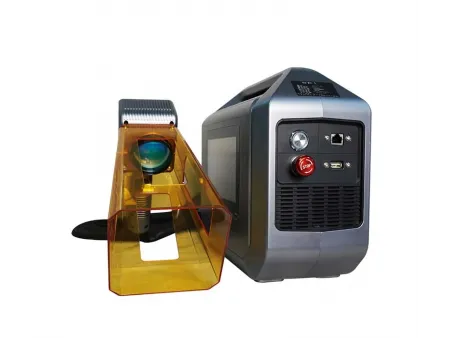

Mini Handheld Fiber Laser Marking Machine
- Laser wavelength 1064nm
- Marking range 75×75mm~100×100mm
- Beam quality M²<1.5
- Max. line speed 7000mm/s
Designed for portability and handheld lightweight use, the entire mini handheld fiber laser marking machine weighs only 6.8kg, allowing for flexible single-hand operation. It is ideal for outdoor industrial scenarios and specifically designed for large-sized objects, featuring one-button touchscreen marking. This machine requires no external power source and offers strong battery life; for example, a 20-watt battery provides up to 11 hours of standby time and 3 hours of continuous operation, meeting the demands for mobile and on-the-spot production!
- Metals: Iron, steel, carbon steel, stainless steel, pure aluminum, aluminum alloy, zinc alloy, titanium alloy, brass, bronze, gold, silver, platinum
- Plastics: ABS, PVC, PE, HDPE

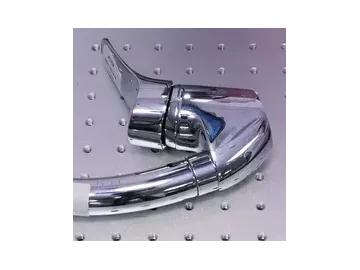

- Stainless steel faucet laser marking

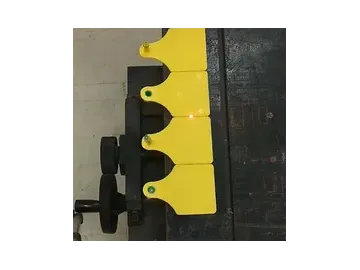

- Animal ear tag laser marking
- Metal pendant laser marking
- Business card case laser marking
- Artwork laser engraving
- Brass laser marking
- Metal sign laser engraving
- Aluminum oxide laser marking
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser power 20W, 30W, 50W
- Laser type fiber laser
- Laser wavelength 1064nm
- Marking range 20W, 30W, 50W
- Beam quality M²<1.5
- Max. line speed 7000mm/s
- Min. character size 0.05mm
- Min. line width 0.01mm
- Cooling method air cooling
- Power supply 220V/50Hz
- Operating temperature 5℃~40℃ (operation outside this range may affect performance and lifespan)
- Machine dimensions 310×155×280mm (cabinet), 230×285mm (handle)
- Package size 590×250×400mm
- Machine weight 7.1kg
- Package weight 8.3kg
- 20W laser powerWorking area ≤75×75mm for surface marking
- 30W laser powerWorking area ≤100×100mm for surface marking
Laser source
Features a compact mini fiber laser, reducing the overall footprint of the machine. It offers high pump conversion efficiency, low power consumption, excellent beam quality, and a lifespan of up to 100,000 hours.
Galvo scanner
A 7000mm/s high-speed scanning head, primarily used for laser marking. It is equipped with a dual-red-light focusing device, which significantly enhances focusing efficiency.
F-theta lens
Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Control card
Equipped with a genuine SEACAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

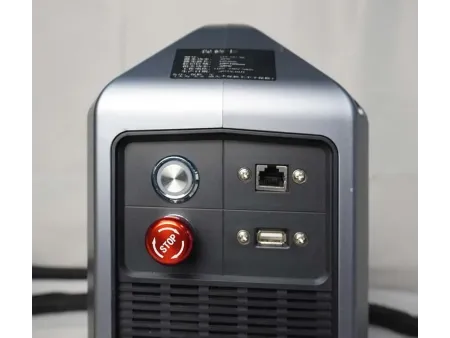

Touchscreen display
Features a major brand BSL system, with a 7-inch touchscreen display embedded in the laser control box. Its integrated design makes it more portable, allowing for laser marking anytime, anywhere.

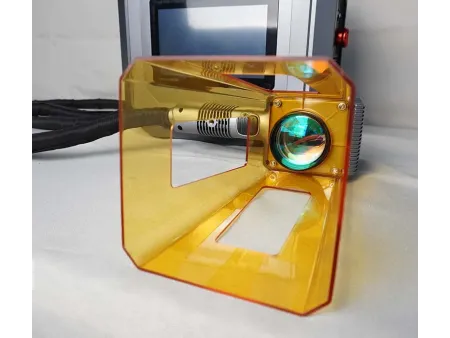

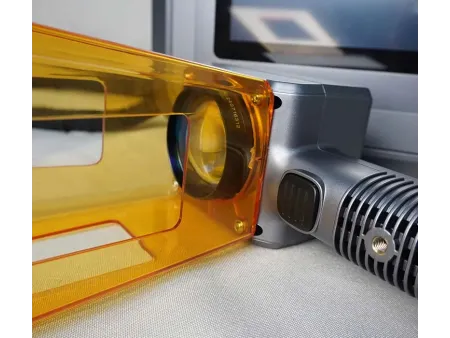

Portable handheld marking head
The lightweight design of the handheld marking head is crafted from high-strength engineering plastic and aerospace aluminum, with an overall weight controlled between 0.85-1.25kg. Combined with a non-slip textured rubberized grip and balanced center of gravity design, it prevents fatigue even during prolonged operation.
Laser safety warning labels
Play a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.
- Fiber laser
- Handheld marking head
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Power cord
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
