Handheld Fiber Laser Welding Machine

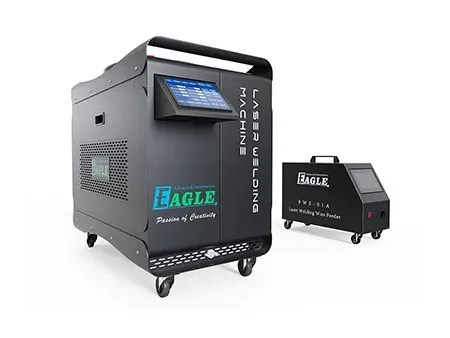

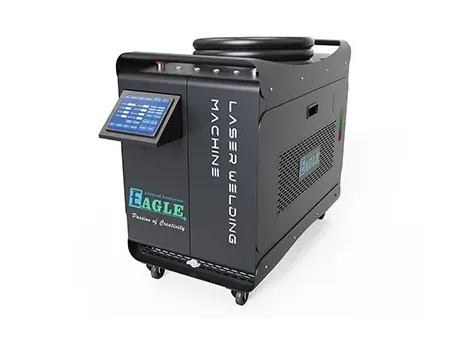

This 3-in-1 laser welding and cleaning machine is designed to be versatile and efficient, which can cut, weld, and clean metal surfaces. It can be equipped with a 10-meter fiber cable, offering flexibility and convenience for outdoor welding tasks. The laser welding machine utilizes infrared positioning for precise alignment of the welding head and accurate verification during welding, ensuring precise welds with minimal deformation and improving the overall quality of the welds, especially in complex or delicate tasks. The 3-in-1 functionality, combined with its portability, makes it an ideal choice for a wide range of industries, including advertising signage, hardware products, automotive parts, and craft gifts. It is suitable for welding various metal materials such as carbon steel, stainless steel, titanium, and aluminum.
Easily switch between multiple beam patterns with this welding gun, which is equipped with a dual-axis quick servo motor for precise control. A digital display screen helps you monitor and manage welding data effectively. The gun is also equipped with a circulating water-cooling system to maintain optimal operating temperatures.
-
- Aluminum alloy welding
-
- Aluminum alloy welding
-
- Stainless steel welding
| Material Power | 1500W | 2000W | 3000W |
| Carbon Steel | 3mm | 5mm | 8mm |
| Stainless Steel | 3mm | 5mm | 8mm |
| Aluminum | 3mm | 3.5mm | 5mm |
| Brass | 2mm | 3mm | 4mm |
| Interface Type | QBH |
| Rated Output Power | 1500-2000W |
| Laser Wavelength | 1064-1080mm |
| Optical Spot Adjustment | 0.2-5mm |
| Collimating Distance | 50mm |
| Focus Distance | 150mm |
| Protective Lens | D20*2mm |
| Cooling Method | Water cooling |
| Welding Head Weight | 0.75kg |
Not at all. For instance, argon arc welding machine typically requires several months to 3-4 years of experience to produce quality welds. In contrast, even someone with no welding experience can achieve excellent welds with a handheld laser welder in about 30 minutes of practice. Additionally, unlike argon arc welding, which often requires extensive post-weld grinding, handheld laser welding usually requires little to no grinding, saving time and reducing costs.
The handheld welding gun can be positioned at an optimal distance from the workpiece and maneuvered around the workpiece or obstacles within the machine, something that other welding methods cannot achieve due to spatial limitations.
