Handheld Fiber Laser Welding Machine

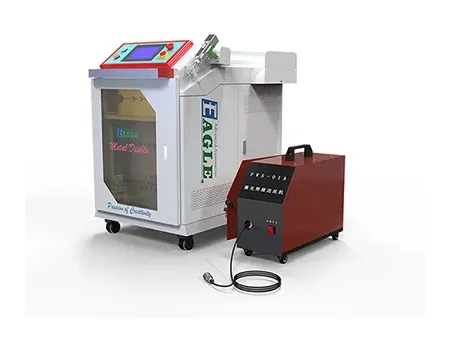

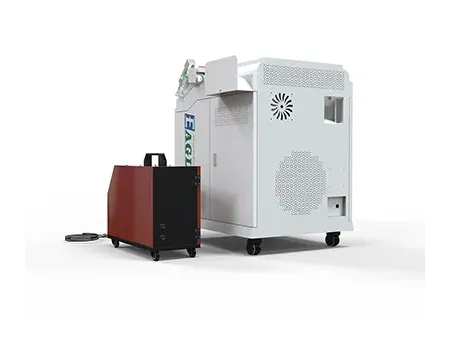

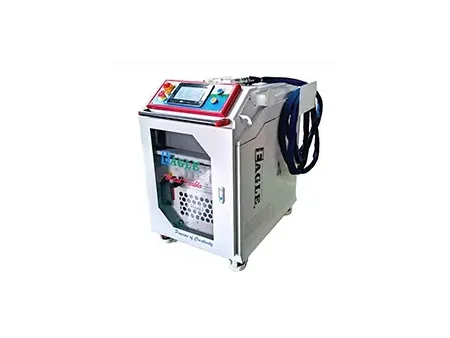

Compared to traditional welding machines, the EF-Hybrid laser welding machine features an integrated design with a built-in water chiller and laser source, offering powerful functionality in a compact space. It comes equipped with a highly efficient welding gun that is easy to use and allows for interchangeable gun nozzles to suit different tasks. Additionally, the machine is fitted with four caster wheels, making it highly portable for welding in various locations.
This laser welder is an excellent replacement for traditional argon arc welding machines, especially in the welding of stainless steel, iron, and galvanized sheets. It brings the power of precision laser welding right to your doorstep, even on the great outdoors, this versatile laser welding machine ensures exceptional results wherever you need them.
| Rated output power | 1500W |
| Power adjustment range | 5%-100% |
| Fiber core diameter | 20μm/30μm/50μm |
| Output fiber length | 10m |
| Working voltage | 220V±10% AC |
| Max. power consumption | 6kW |
| Welding depth | 1-3mm |
| Laser cooling water temperature | 20℃ to 28℃ |
| QBH output head cooling water temperature | 28℃ to 30℃ |
| Welding seam | ≤1.2mm |
| Melting depth | 4.0mm |
| Spot size | 0-5mm |
| pulse frequency | 10-5000Hz |
| Cooling water pressure | 2-3bar |
| Operating Ambient temperature | 10℃ to 40℃ |
| Operating humidity | 10%-80% |
| Dimensions (L×W×H) | 909×609×1015mm |
| Weight | 220kg |
The fiber laser source used is a compact, high-power laser solution known for its large output power, ideal beam quality, maintenance-free operation, and high electro-optical conversion efficiency. The design reduces the size by more than 60%, making it a powerful yet space-saving component.
This versatile welding gun integrates three functions in one. By simply changing the interchangeable heads, you can seamlessly switch between cleaning, welding, and cutting tasks, significantly reducing downtime during operation. It features pure copper welding tips and an integrated shield gas protection system, ensuring high-quality welding results across various applications.
The advanced intelligent control system is tailored for multifunctional welding machines, supporting modular, personalized, and automated solutions. It allows for rapid transitions between welding, cleaning, and cutting in different environments.
The handheld laser welding system comes with a 7-inch configurable TFT touch screen, where laser parameters can be individually set. The main interface displays real-time input/output status, alarm information, and motion status. The real-time monitoring capabilities provide users with instant feedback on machine performance, enhancing safety and operational efficiency.
The integrated water chiller is compact and flexible, perfectly compatible with major brand cabinets. It not only cools the laser welding equipment effectively but also contributes to the overall stability of the machine, even in demanding environments. Its all-in-one design improves dust removal and condensation effects, making the welding machine more adaptable to various environments.
This wire feeder simplifies the welding process by automatically feeding the wire during operation. The wheels beneath it allow for easy and free movement. It also offers automatic wire feeding direction changes, with welding wire sizes ranging from 0.8 to 1.6 mm.
Argon and nitrogen are commonly used as shielding gases in handheld laser welding machines.
It is highly recommended to use purified or distilled water for the machine. If tap water contains impurities, it can negatively impact the cooling environment and may cause damage to the welding head and laser source over time. Using impure water can lead to significant issues, including reduced performance and potential equipment failure.
