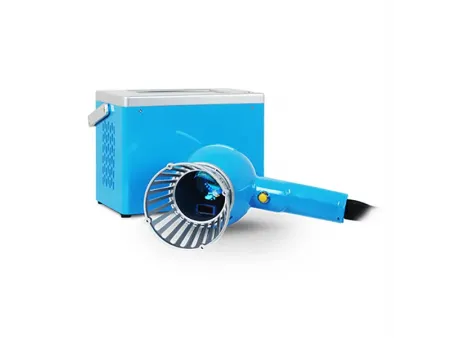

Handheld Intelligent Laser Marker
- Output Power: 18.5W
- Marking Area: 80mm
- Repetition accuracy: ±0.002
- Engraving Speed: ≤10000mm/s
The Fiber Handheld Smart Laser is a portable, battery powered and fully autonomous marking machine! It has a powerful power supply system with 24V rechargeable lithium battery, which can last for 6-8 hours under normal use. It’s light weight and versatility make it ideal for perfect marking of large, heavy or difficult to handle work pieces.

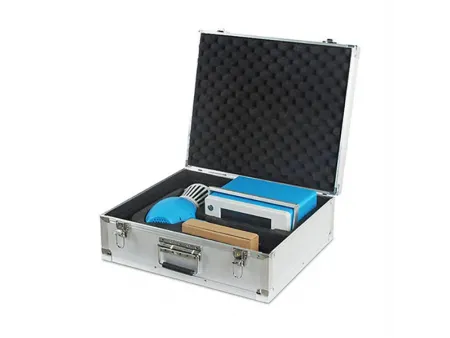

The Fiber is powerful, sturdy and reliable. The weight of the whole machine is 6 kg, and it’s marking head is only 1.25 kg. It has an ergonomic grip, which is comfortable to hold and easy to operate. Rear USB interface, software support: text, pattern, QR code, barcode, serial number, graphics and other marking content, in addition, Q8 also has a special box that is convenient for storage and can be carried to different places. It is one of the smallest rechargeable laser marking machines on the market!
| Model | ||
| Laser Parameters | ||
| Output Power | 18.5W | |
| Beam Quality M2 | ≤1.4 | |
| Pulse repetition rate | 27-60 kHz | |
| Wavelength | 1064±5 | |
| Output power stability | < 3% | |
| Life time | ≈100,000 working hours | |
| Optical properties | Marking Area | 80mm |
| Engraving Depth | ≤1mm | |
| Engraving Speed | ≤10000mm/s | |
| Repetition accuracy | ±0.002 | |
| Min. Line Width | 0.1mm | |
| Min.Font Height | 0.15mm | |
| Working Environment | Battery life | 6-8 hours under normal use |
| Cooling Mode | Air Cooling | |
| System power supply | 500W / 100-240V / 50/60Hz | |
| Other Parameters | Operation System | Linux |
| File Format | Software support text, pattern, QR code, bar code, serial number, graphics, etc. (USB input) | |
| Equipment Size | Controlling case: 250x135x195mm Marking head: 250x120x260mm | |
| Equipment Weight | Whole machine : 6kg ; Laser head : 1.25kg | |
