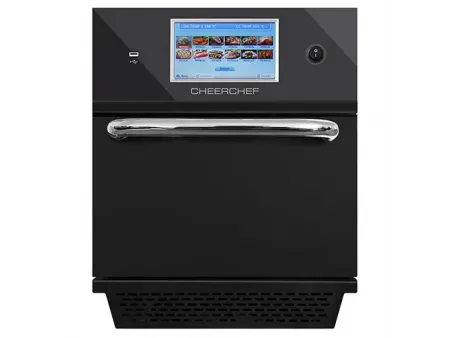

High-Speed Oven, 24.3L
EC Series
Microwave Convection Built-in Catalyst Converter Smart Menu System
A cost-effective fast cooking solution for stable and efficient hot food preparation.Designed for budget-conscious operations, focusing on delivering reliable cooking performance with simplified operation and lower operating costs.
Why Choose EC Series?
A practical choice for budget-sensitive projects that still require stable cooking results.
Reduces training time and reliance on experienced staff, supporting smoother daily operation.
Suitable for extended operating hours while keeping power usage under control.
Consistent results with lower noise levels and reduced power consumption.
Reduced compared with conventional ovens
41 dB in standby mode
Approximate consumption
Approximate consumption

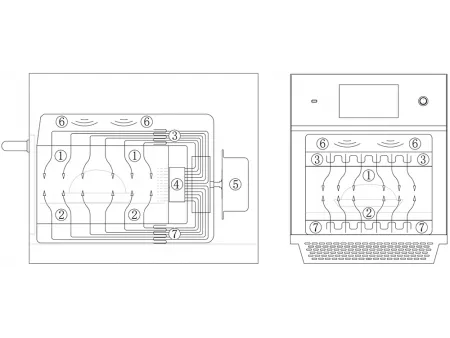

How It Works
- 1 Upper variable-speed convection airflow
- 2 Lower variable-speed convection airflow
- 3 Upper heating element
- 4 Catalytic converter
- 5 Variable-speed fan
- 6 Upper microwave system
- 7 Lower heating element
- 430 stainless steel exterior
- Cool-to-touch outer surfaces
- 304 stainless steel interior
- Insulated cooking chamber
Key Features
- Compact exterior design (overall width 40.9 cm, base width only 33.8 cm).
- Larger cooking chamber (31.2 × 31.2 cm), capable of baking a 12-inch pizza.
- Control interface languages available in Chinese, English, German, French, Spanish, Portuguese, and Russian.
- Up to 432 programmable menus, with six cooking stages per menu.
- Menu management support: PC-based software, remote transfer via internet, and USB upload.
- Ventless design with no grease emissions (Built-in catalytic converter).
- Temperature range: 5–270 °C / 41–518 °F with three temperature modes.
- 430 stainless steel exterior (Cool-to-touch) & 304 stainless steel interior.
- Built-in self-diagnostic system & One-year warranty.
Dimensions and Specifications
| Models | | | | | |
| Power class | Standard | Medium | Medium | High | High |
| Power supply | Single phase | Single phase | Single phase | Single phase | Single phase or 3-phase |
| Max current | 13 A | 15 A | 16 A | 20 A | 30 A or 20 A |
| Max input power | 2900 W | 3300 W | 3500 W | 4500 W | 6500 W |
| Max microwave output power | 1000 W | 1000 W | 1000 W | 1000 W | 2000 W |
| Convection heating power | 1400 W | 1800 W | 2000 W | 2800 W | 3400 W |
| Combined microwave convection power | 1000 W 1400 W | 1000 W 1800 W | 1000 W 2000 W | 1000 W 2800 W | 2000 W 3400 W |
| Avg power consumption (operating) | 1100 W | 1200 W | 1300 W | 1500 W | 2000 W |
| Avg power consumption (standby) | 400 W | 450 W | 550 W | 600 W | 700 W |
| Avg noise (operating) | 41 dB | 41 dB | 41 dB | 41 dB | 41 dB |
| Avg noise (standby) | 51 dB | 51 dB | 51 dB | 51 dB | 51 dB |
| Working principle | microwave convection catalytic conversion smart menu system | ||||
| Display | 7-inch touchscreen | ||||
| Temperature modes | 3 temperature modes | ||||
| Airflow configuration | bi-directional airflow (top bottom) | ||||
| Pre-programmed recipes | 432 recipes | ||||
| Recipe programming | multi-stage programming, up to 6 cooking stages per recipe | ||||
| Temperature setting | 5–270 °C (5 °C increments), 41–518 °F (9 °F increments) | ||||
| Recommended max set temperature | ≤260 °C (500 °F) | ||||
| Time setting | 00:00–59:50 (10-second increments) | ||||
| Microwave power setting | 0–100% (10% increments) | ||||
| Fan speed setting | 10–100% (1% increments) | ||||
| Programming & loading | menu editing via oven interface or PC, USB transfer, image support, remote menu transfer via internet | ||||
| Overall dimensions | ||
| Width | 16.34 in | 41.5 cm |
| Base width | 13.31 in | 33.8 cm |
| Depth | 23.54 in | 59.8 cm |
| Height | 19.69 in | 50.0 cm |
| Net weight (single / dual microwave) | 127.9 / 149.9 lb | 58 / 68 kg |
| Cooking chamber | ||
| Chamber width | 12.40 in | 31.5 cm |
| Chamber depth | 12.40 in | 31.5 cm |
| Chamber height | 9.65 in | 24.5 cm |
| Chamber volume | 0.86 cu ft | 24.3 liters |
| Installation clearance | ||
| Top clearance | 1.97 in | 50 mm |
| Side clearance | 0.98 in | 25 mm |
| Packaging dimensions | ||
| Width | 17.80 in | 452 mm |
| Depth | 29.88 in | 759 mm |
| Height | 25.87 in | 657 mm |
| Gross weight (single / dual microwave) | 178.6 / 205.0 lb | 81 / 93 kg |
Note: This high-speed cooking oven requires a Type D (motor-rated) circuit breaker for proper installation and operation.
Programmable cooking system allows bakeries to manage different pastry processes with ease. Recipes can be saved and repeated accurately, helping maintain consistent results across a wide range of cooking methods and different kinds of food.
Rapid cooling makes it easier to switch between sweet and savory items within the same workflow. This improves daily operational flexibility and reduces waiting time between menu changes.
Smart menu programming reduces manual steps during operation, making it easier for teams to repeatable cooking results across different menu items with consistent food quality.
