PA Hook & Loop Textile Wrap
Request a Quote
TS2563
- Material: Nylon (PA)
- Color: Black
- Operating Temperature: −40°C to 150°C
- Cutting Method: Hot cutting
- Packaging: Paper reel
Now

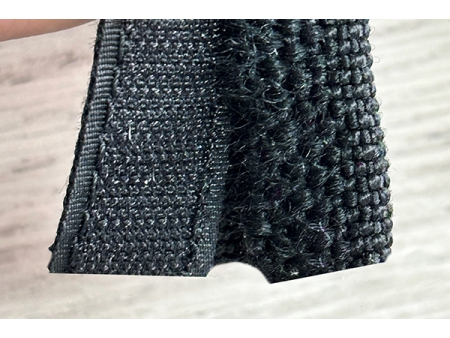

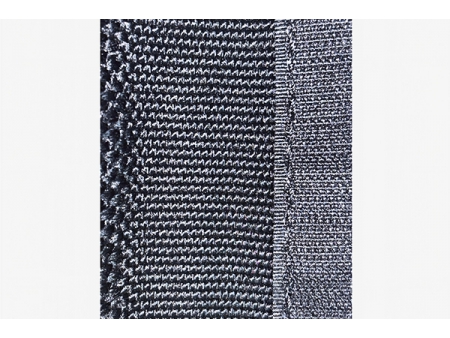

TS2563 series is a hook-and-loop textile wrap made from high-strength, environmentally friendly nylon filaments. It offers excellent abrasion resistance and dustproof performance, providing reliable protection for hoses, cables, and wire harnesses. The hook-and-loop design allows for quick installation and removal.
Applications
This hook-and-loop wrap is suitable for automotive, electrical equipment, robotics, and fluid transfer systems, providing rapid installation and reliable protection, especially in systems requiring frequent maintenance.
Certifications
Parameters
| Model | Diameter (mm) | Flat Width (mm) | Thickness (mm) | Packaging Length (m/reel) |
|---|---|---|---|---|
| 13 | 68±4 | 1.1±0.2 | 100 | |
| 16 | 78±4 | 1.1±0.2 | 100 | |
| 19 | 90±4 | 1.1±0.2 | 100 | |
| 25 | 110±5 | 1.1±0.2 | 100 | |
| 32 | 129±5 | 1.1±0.2 | 100 | |
| 38 | 145±6 | 1.1±0.2 | 100 | |
| 45 | 168±6 | 1.1±0.2 | 100 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
