Horizontal Glass-Lined Storage Tank

Request a Quote

Website: http://lanteglasslined-en.com/horizontal-glass-lined-storage-tank-2-1.html

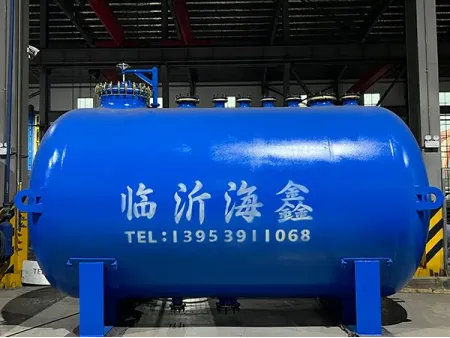

The horizontal glass-lined storage tank is available in capacities from W1000L to W40000L and is manufactured in accordance with ASME and PED pressure vessel standards. It is widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries, providing an efficient and stable storage solution for different production scales.

→

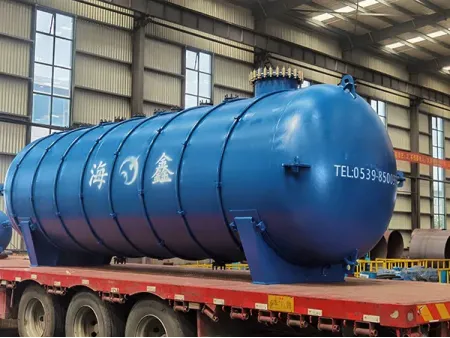

Supported by saddle supports, the horizontal glass-lined storage tank features a low center of gravity and a stable structure. This design provides good installation stability and is especially suitable for sites with limited building height.

Features

Reliable glass lining performance
The glass lining thickness is controlled within 0.8-2.0 mm and can withstand a 20 kV high-voltage spark test without breakdown.
Suitable for corrosive and sanitary media
The tank can be used to store strongly corrosive media, including acids, alkalis, and organic solvents of various concentrations, as well as sanitary-grade materials.
Flexible optional configurations
Based on the standard structure, the tank can also be equipped with a jacket or half-pipe heating and insulation structure, as well as optional components such as a level gauge, bottom outlet valve, and lifting lugs.

Technical Specifications

Nominal Capacity VN/L	Main Dimensions										Nozzle DN
Nominal Capacity VN/L	DN	H1	H2	H	L1	L2	L3	L	K	A	M	a	b	c	d	n	e1-e2
1000	1000	700	712	1290	760	220	1200	1966	600	760	400	80	80	80	-	-	65
2000	1200	850	812	1480	870	300	1500	2370	720	880	500	80	80	80	80	-	65
3000	1450	1100	989	1795	760	370	1500	2600	900	1060	600	100	80	80	80	80	65
4000	1450	1100	989	1800	1430	370	2170	3223	900	1060	600	100	80	80	80	80	65
5000	1600	1200	1066	1950	1340	400	2140	3343	960	1120	600	100	80	80	80	80	65
6300	1750	1230	1141	2100	1420	390	2200	3397	1120	1280	600	100	80	80	80	80	65
8000	1900	1350	1218	2250	1580	440	2460	3734	1200	1360	600	100	80	80	80	80	65
10000	2000	1400	1270	2360	1840	460	2810	4136	1260	1420	600	150	150	150	150	150	65
12500	2000	1400	1270	2360	2550	500	3600	4926	1260	1420	600	150	150	150	150	150	125
16000	2200	1540	1370	2560	2670	500	3720	5176	1380	1580	600	150	150	150	150	150	125
20000	2400	1680	1472	2770	2770	550	3920	5478	1520	1720	600	150	150	150	150	150	125
25000	2800	1960	1674	3170	2220	600	3470	5230	1800	2040	600	150	150	150	150	150	150
30000	3000	2100	1776	3370	2190	630	3500	5362	1940	2180	600	150	150	150	150	150	150
40000	3200	2240	1878	3820	3020	650	4320	6287	2100	2340	600	150	200	150	150	200	150
