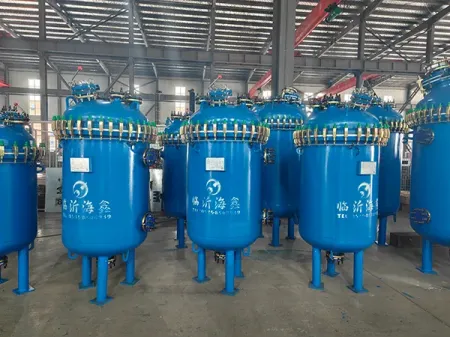

Vertical Glass-Lined Storage Tank, K Type (Open Type)

Request a Quote

Website: http://lanteglasslined-en.com/vertical-glass-lined-storage-tank-k-type-2-3.html

The vertical glass-lined storage tank, K type (open type) is available in capacities from K50L to K10000L and is manufactured in accordance with ASME and PED pressure vessel standards. It is widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries, providing an efficient and stable storage solution for different production scales.

→

Designed with a vertical open-top structure, the vertical glass-lined storage tank, K type makes operation and maintenance more convenient. This configuration combines corrosion resistance and hygienic performance for the storage and transfer of strongly corrosive media and clean materials.

Features

Open structure for easy operation
The tank consists of a vessel body and a cover, making it convenient for feeding, inspection, and cleaning and suitable for processes that require frequent operation.
Reliable glass lining performance
The enamel lining thickness is 0.8-2.0 mm and can withstand a 20 kV high-voltage spark test without breakdown.
Suitable for corrosive and sanitary media
The tank can be used to store acids, alkalis, organic solvents, and sanitary-grade materials, offering good non-stick performance and excellent product preservation.
Flexible optional configurations
The tank can be equipped with a jacket or half-pipe heating and insulation structure, along with accessories such as a level gauge, bottom outlet valve, and lifting lugs, to meet different process requirements.

Technical Specifications

Nominal Capacity VN/L	Main Dimensions								Nozzle DN
Nominal Capacity VN/L	D1	D2	D3	H1	H2	H3	H4	H5	M	H	a	b	c	d	g	e1,e2
50	400	280	160	185	-	-	580	1005	-	80	65	65	65	-	-	-
100	500	320	210	210	-	-	680	1108	-	100	65	65	65	-	-	-
200	600	420	230	245	-	-	900	1410	-	100	65	65	65	65	-	-
300	700	490	260	350	-	-	980	1520	-	125	65	65	65	65	65	-
500	800	560	280	375	170	700	1320	1910	-	150	80	80	65	65	65	65
1000	1000	700	350	425	170	950	1580	2206	-	150	80	80	80	80	80	65
1500	1200	840	420	480	200	900	1640	2360	300×400	-	100	80	80	80	80	65
2000	1300	910	475	505	200	1050	1835	2585	300×400	-	100	80	80	80	80	65
3000	1450	1020	550	553	200	1230	2063	2835	300×400	-	100	80	80	80	80	65
5000	1600	1120	600	595	220	1900	2785	3598	300×400	-	125	80	80	80	80	65
6300	1750	1220	675	633	220	1920	2896	3730	300×400	-	125	100	100	100	100	65
8000	2000	1400	750	695	220	1860	2850	3770	300×400	-	125	100	100	100	100	65
10000	2200	1540	825	765	220	1900	2965	3941	300×400	-	150	125	125	125	125	100
