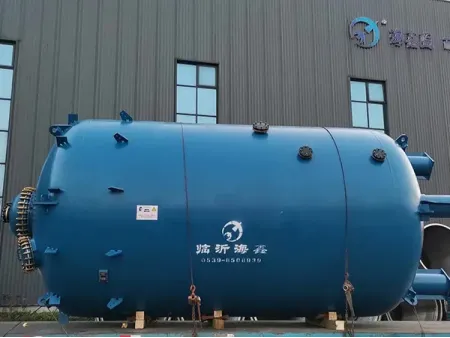

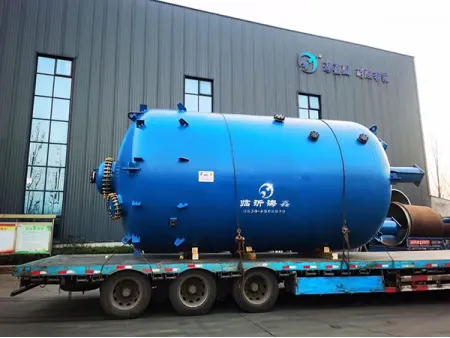

Glass-Lined Storage Tank, F Type (Closed Type)

Request a Quote

Website: http://lanteglasslined-en.com/glass-lined-storage-tank-f-type-2-2.html

The glass-lined storage tank, F type (closed type) is available in capacities from F500L to F40000L and is manufactured in accordance with ASME and PED pressure vessel standards. It is widely used in the chemical, petroleum, pharmaceutical, agrochemical, food, and dye industries, providing an efficient and stable storage solution for different production scales.

→

Featuring a vertical closed-top structure with an integrated upper head, the glass-lined storage tank, F type offers excellent corrosion resistance and hygienic performance. It is suitable for the safe storage of strongly corrosive media and high-cleanliness materials.

Features

Integrated upper head structure
The upper head and cylindrical shell are formed as an integral structure, providing reliable sealing performance and making the tank suitable for long-term stable storage.
Durable glass lining
The enamel lining thickness is 0.8-2.0 mm and can withstand a 20 kV high-voltage spark test without breakdown.
Suitable for corrosive and sanitary media
The tank can safely store a wide range of acids, alkalis, organic solvents, and sanitary-grade materials, while also offering good non-stick performance and product preservation.
Optional configurations for different duties
The tank can be equipped with a jacket or half-pipe heating and insulation structure, along with accessories such as a level gauge, bottom outlet valve, and lifting lugs, to meet different operating requirements.

Technical Specifications

Nominal Capacity VN/L	Main Dimensions									Nozzle DN
Nominal Capacity VN/L	D1	D2	D3	H1	H2	H3	H4	H5	H6	H	M	a	b	c	d	e1,e2
500	900	500	315	160	355	100	500	950	1745	100	-	80	80	50	50	65
800	1000	500	350	160	380	120	560	1075	1890	100	-	80	100	50	50	65
1000	1000	500	350	160	380	120	830	1345	2170	100	-	80	100	50	50	65
1500	1200	500	420	160	430	120	955	1520	2438	100	-	80	100	50	50	65
2000	1300	500	475	160	455	120	1010	1600	2525	100	-	80	100	50	50	65
3000	1450	600	550	180	518	120	1260	1888	2900	125	-	100	125	80	80	65
4000	1600	600	600	180	555	150	1480	2205	3250	125	-	100	125	80	80	65
5000	1600	600	600	180	555	150	1870	2595	3640	125	-	100	125	80	80	65
6300	1750	600	675	180	592.5	150	1900	2663	3715	125	-	100	125	80	80	65
8000	2000	600	750	180	655	150	1860	2685	3841	125	-	100	125	80	80	65
10000	2200	600	825	180	720	150	1900	2790	4000	125	400×300	100	150	80	80	100
12500	2200	600	825	180	720	150	2470	3360	4568	125	400×300	100	150	80	80	100

Nominal Capacity VN/L	Main Dimensions										Nozzle DN
Nominal Capacity VN/L	D1	D2	D3	H1	H2	H3	H4	H5	H6	H7	M	H	a	b	c	d	e1-e4
15000	2400	600	900	180	200	1400	1400	200	4210	4712	400×300	125	100	150	80	80	100
16000	2400	600	900	180	200	1450	1450	200	4350	4850	DN400	125	100	150	80	80	100
20000	2600	600	975	180	200	1530	1530	200	4650	5120	DN400	125	100	150	80	80	100
25000	2800	600	1050	180	200	1700	1700	200	5080	5580	DN400	125	100	150	80	80	125
30000	3000	600	1125	180	200	1730	1730	200	5230	5715	DN400	125	100	150	80	80	125
40000	3200	600	1200	180	200	2120	2120	200	6030	6470	DN400	125	100	200	80	80	125
