Promatrix 106FC
Watch Video
Promatrix 106FC is designed for label and packaging work that requires decorative finishing and die cutting in post-press production. These post press machines are used for hot foil embossing on paper-based packaging, adding metallic foil effects and raised details to labels, folding cartons, cosmetic boxes, food packaging, and other printed packaging products. When a job also requires cutting, Promatrix 106FC can be used as a die cutter, with optional stripping to remove waste after the cutting process.
Technical Parameters
| Suitable Materials | |
| Paper (Min.) | 90 g/m² |
| Cardboard (Max.) | 2000g/m² |
| Corrugated Cardboard (Max.) | 4.0 mm |
| Operating Parameters | |
| Max. Sheet Size | 760 × 1060 mm |
| Min. Sheet Size | 300 × 350 mm |
| Max. Cutting Pressure | 3.0 MN / 300 t |
| Max. Machine Speed | 7500 sheets/hour |
| Hot Foil Unit | |
| Max. Hot Foil Stamping Speed | 7500 sheets/hour |
| Hologram Speed (Optional) | 5500 sheets/hour |
| Max. Temperature | 180°C |
| Number of Heating Zones | 20 |
| Foil Reel Diameter | |
| Longitudinal Foil Reel Diameter | Max. 250 mm |
| Transverse Foil Reel Diameter | Max. 200 mm |
| Foil Width | 20–1060 mm |
| Pile Height (Including Pallet) | |
| Max. Feeder Pile Height (without non-stop) | 1,500 mm |
| Max. Feeder Pile Height (with non-stop) | 1200 mm |
| Max. Delivery Pile Height | 1,400 mm |
Features

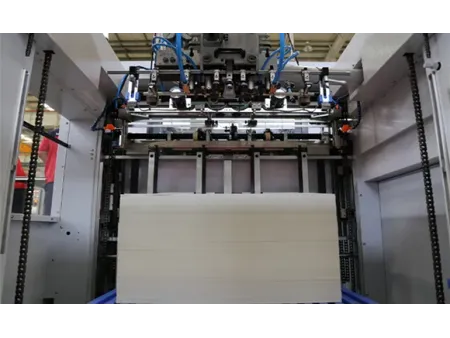

Non-stop Feeder
- The suction head feeds paper, board, and corrugated board into Promatrix 106FC with stable sheet pickup.
- Quick positioning helps operators adjust the suction head faster when changing jobs.
- The pile platform uses motorized side alignment to keep the sheet stack in the correct feeding position.
- Mechanical double-sheet detection reduces the risk of two sheets entering the line at the same time.

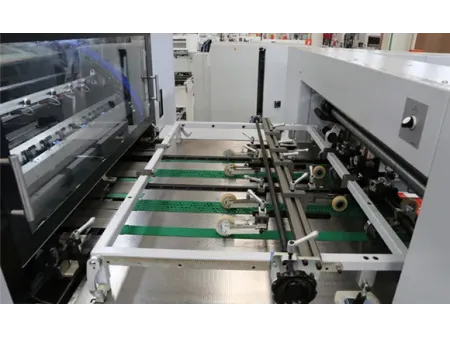

Feeding Table
- The register system helps position each sheet before it moves into the platen press.
- Pull/push side lays are available on both the operator side and drive side to ensure flexible sheet alignment.
- The suction belt table keeps sheets flat and controlled as they move through the feed table.
- Rollers and brushes are adjusted from one central point, which makes feed table setup easier and keeps the settings more consistent.
- Four front lays with optical monitoring help confirm that each sheet is correctly positioned before entering the press section.
- Thanks to the ultrasonic double-sheet detection it's possible to prevent double sheet feeding before the sheet enters the press section.
Die Cutting Section
- The registration system keeps each sheet in the correct position before cutting or foil stamping.
- Operators can adjust the cutting pressure by motor, depending on the material and the type of job.
- Upper and lower tools are opened and locked pneumatically, which makes setup and tool change easier
- Fine adjustment of the cutting plate gives operators better control when setting the cutting position.
- An air cushion makes the cutting plate easier to move during setup and changeover.
- Optional chase changer can be added for faster tool preparation between jobs.
Hot Foil Unit
- Promatrix 106FC has 3 longitudinal foil feeding shafts and 2 transverse foil feeding shafts for different foil layouts.
- Optional hologram device can be used for jobs that require holographic foil effects.
- 20 heating zones give operators more control over stamping temperature for different foils and materials.
- Telescopic foil feeding bars make foil setup more flexible across the sheet width.
- Equipped with motorized brush devices to collect waste foil after stamping and to keep the foil area cleaner during operation.
- Can be equipped with an optional rewinder for foil waste collection and handling.
Delivery Section
- The non-stop delivery belt keeps sheets moving out of the delivery section without stopping the hot foil stamping.
- Pneumatic flaps allow operators to remove test sheets for quality checks without stopping production.
- Brake brush power can be adjusted by motor to control sheet delivery more accurately.
Hot Foil Control System
- The hot foil computer system calculates foil feeding steps according to the stamping layout.
- Operators can adjust temperature and cutting pressure through the system according to job needs.
- Hologram application can be controlled when the optional hologram device is used.
- Job data can be saved for repeat orders and faster setup next time.
- Foil feeding steps can be simulated before production, which helps operators check the setup and reduce unnecessary foil waste.
