Luxury Business
Request a Quote
LCK6720DQ

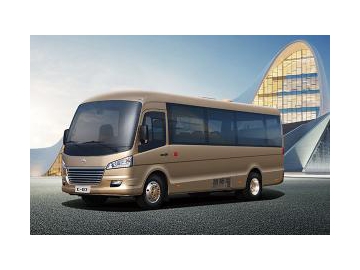

LCK6720DQ luxury business bus is designed cooperatively by Zhongtong and well-known design companies in Europe, with a vigorous appearance. The high-precision fully-stamped skin has greatly added to its beauty. This bus is equipped with the engine from well-known brand, providing strong power for long-distance driving. It is suitable for business reception, tourism, and group transport.
Bus parameters | total length (mm) | 7200 | Engine | model | ISF3.8S4154 | |
total width (mm) | 2140 | manufacturer | Foton/ Cummins | |||
total height (mm) | 2730/2880 | position/fuel | front/diesel | |||
inner height (mm) | 1970 | type | straight 4-cylinder, 4-stroke, water cooling, turbocharging, intercooling | |||
wheelbase (mm) | 4100 | max power (kw) | 115/2600 | |||
front/rear suspension (mm) | 1180/1920 | max torque (N.M) | 500/1200-1900 | |||
approach angle/departure angle (º) | 20/15 | displacement (ml) | 3.76 | |||
height of single step (mm) | 370 | cylinder diameter × stroke (mm) | 107×124 | |||
max total mass defined by factory (kg) | 7700 | emission standard | Euro IV standard | |||
rated capacity (person) | 10-23 (standard 16 1) | capacity of luggage compartment (m3) | 0.55 | |||
max speed (km/h) | 130 (speed limit 100) | |||||
Item | Standard configuration | Optional configuration | ||||
Chassis | gearbox | ZF6S500 | ||||
Parameters | clutch | φ362, single plate, dry, imported clutch | ||||
front axle | Jinben independent front axle, 2.7T | |||||
rear axle | Fangzheng 5.5T, improted gearbox, SKF maintenance-free wheels | |||||
suspension | air suspension with 2 airbags (2 for front/2 for rear) | |||||
steering | recirculating type ball integral power steering gear | |||||
brake | double circuit brake; front/gear disc brake; EBS electronically controlled braking system; ESP electronic stability control system | |||||
fuel tank | 100L | |||||
tire | Michelin 215/75R17.5 tires (7); Aluminum rims | |||||
accumulator/alternator | 120Ah /160A | |||||
seat | 2 1 layout; 16 1 seat; luxury business seat; 2-point safety belt for each seat | 19 1 business seat, VIP seat |
