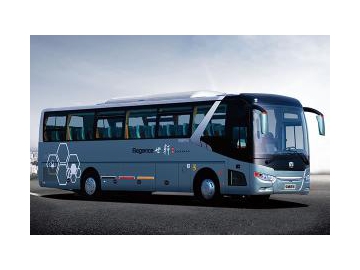

6129H Coach

6129H coach has 6 more seats than other models. That's to say, its profitability is nearly 16% higher than others. The combination of high and large driving space, business class seats, large windows and various quiet technologies makes a comfortable driving. The full bearing structure is made of high-strength steel with press forming technology.

The framework features high solidity, high reliability, superior solidity, good resistance to vibration, and high twisting strength. The whole vehicle is designed to be lightweight with the simulation of dynamic performance. The frequency conversion thermal management system allows the energy consumption of our coach to be kept at a low level.

Bus parameter	total length (mm)		11990	engine	model		WD615.44/L360 20/ OM 457LA
	total width (mm)		2550		manufacturer		Weichai/ DCEC/Cummins/Benz
	total height (mm)		3830		position/fuel		rear/diesel
	inner height (mm)		2030		type		straight 6-cylinder, 4-stroke, water cooling, turbocharging, intercooling, direct injection
	wheelbase (mm)		6000		max power (kw)		235/254/260
	front/rear suspension (mm)		2600/3390		max torque (N.M)		1250/1480/1750
	approach angle/departure angle (º)		9/9		displacement (ml)		9726/8900/11970
	height of single step (mm)		380		cylinder diameter × stroke (mm)		126×130/114X144.5/128*155
	max total mass defined by factory (kg)		18000		emission standard
	rated capacity (person)		51 1 5	luggage compartment volume (m3)			9 (through type)
	max speed (km/h)		100
Item			Standard				Optional
Chassis parameter		chassis	Zhongtong Bus Holding Co., Ltd.
		gearbox	Qijiang S6-160/Fast 6DS180T， 6-speed gearbox (OM 457LA)			Benz GO210-6E (equipped with Benz engine and hydrodynamic retarder)
		clutch	imported clutch φ430, single plate, dry
		front axle	Dongfeng Dano, 6.5T			Benz F7.5, disc brake
		rear axle	Dongfeng Dano, 13T (accurate grinding gear, imported bearing)			Benz R440 13T, rear axle, disc brake
		suspension	air suspension with 6 airbags
		steering	recirculating type ball integral power steering gear			ZF8098
		brake	front-disc rear-drum, ABS (KORMEE), automatic gap adjusting arm, CAMA eddy current retarder			WABCO ABS, disc brake for rear axle
		fuel tank	300L 300L			235L 235L
		tire	295/80R22.5 (double coin)			Michelin tire, aluminum alloy wheel
		accumulator/alternator	195Ah/150AX2 Prestolite
		seat	51 1 1 5; Zhongtong ZTZY3210 seat (with lateral movement function); ZTZY1052 driver's seat; safety belt for each seat; safety belt warning system for all seats			passenger seat with lateral movement function; adjustable pedal; ZTZY20700 tour guide seat

6148HQS Coach

6148HQS coach has 6 more seats than other models. That's to say, its profitability is nearly 16% higher than others. The combination of high and large driving space, business class seats, large windows and various quiet technologies makes a comfortable driving.

The full bearing structure is made of high-strength steel with press forming technology. The framework features high solidity, high reliability, superior solidity, good resistance to vibration, and high twisting strength. The whole vehicle is designed to be lightweight with the simulation of dynamic performance. The frequency conversion thermal management system allows the energy consumption of our coach to be kept at a low level.

Bus parameter	total length (mm)	14000	Engine	model	ISM11E5 420
	total width (mm)	2600		manufacturer	Cummins
	total height (mm)	4170		position/fuel	rear/diesel
	inner height (mm)	1800/1800		type	straight 6 cylinder, 4 stroke, water cooling, intercooling, direct injection
	wheelbase (mm)	7100 1450		max power (kw)	306/1900
	front/rear suspension (mm)	2550/2900		max torque (N.M)	2010/1200
	approach angle/departure angle (º)	8.5/8.5		displacement (ml)	10.8
	height of single step (mm)	≤380		cylinder diameter × stroke (mm)	125×147
	max total mass defined by factory (kg)	25500
	rated capacity (person)	48 16 2 1		emission standard
	Luggage compartment volume (m3)	120
	total length (mm)	7.5
Item						Remark
Chassis parameter	gearbox	ZF6AP2000B automatic gearbox with hydraulic retarder
	clutch	JBI1316A independent suspension for front axle, disc brake 7.5T
	front axle rear axle	Dana 13T, disc brake
		Dana 7.5T, disc brake
	suspension	suspension with 8 airbags				bus body lift system from Knorr
	steering	ZF integral power steering gear
	brake	double circuit brake				Knorr ESP, JABCO engine brake
	fuel tank	600L
	tire	315/80R22.5 (Double Coin)				Aluminum alloy wheel
	accumulator/alternator	195Ah×2 / 150AX2 24V (prestolite)
	seat	ZTZY1052 driver seat with air bag; Marco Polo passenger seats; safety belt for each seat; with ECE mark; pedal; leg support; mesh belt
