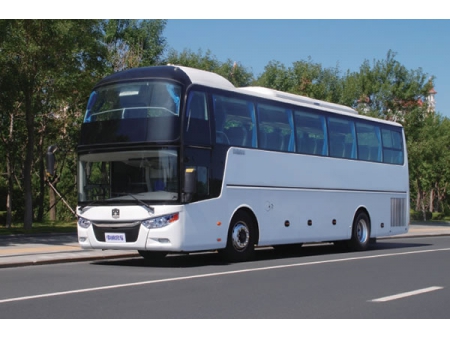

6148HQS Coach (Magnate)
Request a Quote
6148HQS coach has 6 more seats than other models. That's to say, its profitability is nearly 16% higher than others.The combination of high and large driving space, business class seats, large windows and various quiet technologies makes a comfortable driving.The full bearing structure is made of high-strength steel with press forming technology. The framework features high solidity, high reliability, superior solidity, good resistance to vibration, and high twisting strength.The whole vehicle is designed to be lightweight with the simulation of dynamic performance. The frequency conversion thermal management system allows the energy consumption of our coach to be kept at a low level.
| Bus parameter | total length (mm) | 14000 | Engine | model | ISM11E5 420 | |
| total width (mm) | 2600 | manufacturer | Cummins | |||
| total height (mm) | 4170 | position/fuel | rear/diesel | |||
| inner height (mm) | 1800/1800 | type | straight 6 cylinder, 4 stroke, water cooling, intercooling, direct injection | |||
| wheelbase (mm) | 7100 1450 | max power (kw) | 306/1900 | |||
| front/rear suspension (mm) | 2550/2900 | max torque (N.M) | 2010/1200 | |||
| approach angle/departure angle (º) | 8.5/8.5 | displacement (ml) | 10.8 | |||
| height of single step (mm) | ≤380 | cylinder diameter × stroke (mm) | 125×147 | |||
| max total mass defined by factory (kg) | 25500 | |||||
| rated capacity (person) | 48 16 2 1 | emission standard | ||||
| Luggage compartment volume (m3) | 120 | |||||
| total length (mm) | 7.5 | |||||
| Item | Remark | |||||
| Chassis parameter | gearbox | ZF6AP2000B automatic gearbox with hydraulic retarder | ||||
| clutch | JBI1316A independent suspension for front axle, disc brake 7.5T | |||||
| front axle rear axle | Dana 13T, disc brake | |||||
| Dana 7.5T, disc brake | ||||||
| suspension | suspension with 8 airbags | bus body lift system from Knorr | ||||
| steering | ZF integral power steering gear | |||||
| brake | double circuit brake | Knorr ESP, JABCO engine brake | ||||
| fuel tank | 600L | |||||
| tire | 315/80R22.5 (Double Coin) | Aluminum alloy wheel | ||||
| accumulator/alternator | 195Ah×2 / 150AX2 24V (prestolite) | |||||

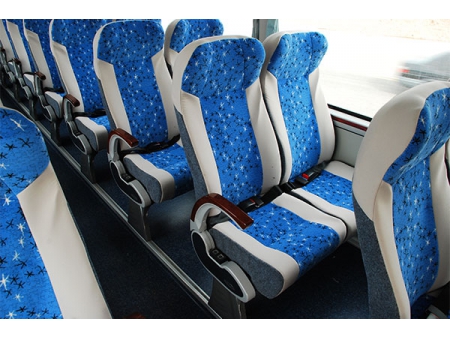

| seat | ZTZY1052 driver seat with air bag; Marco Polo passenger seats; safety belt for each seat; with ECE mark; pedal; leg support; mesh belt | |||||
